Once you receive your order confirmation email, your order will be processed within 2–3 business days (excluding weekends and public holidays).
Installation must be carried out by a qualified electrician.
Ensure power is switched off before installation.
Suitable for indoor use.

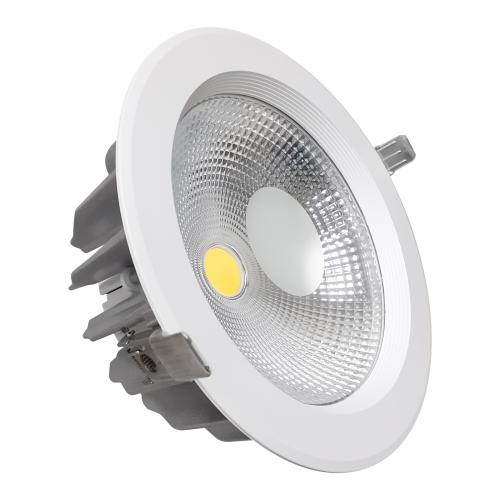

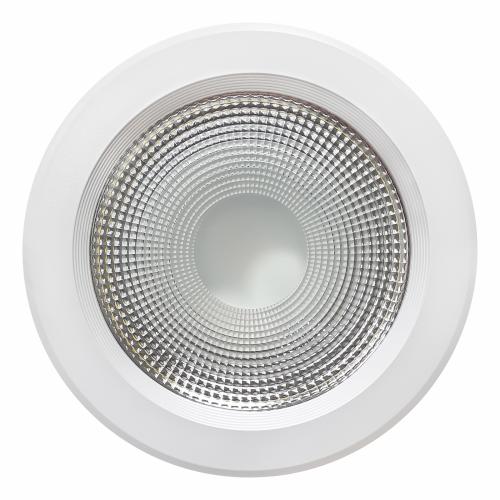

This V-Tac COB (Chip on Board) LED downlight delivers exceptional illumination in a compact recessed format, making it a powerful choice for both commercial and residential applications where high lumen output is required. With a 30W power consumption that provides equivalent illumination to a 270W conventional light source, this fitting offers dramatic energy savings without compromising on brightness. The impressive 3600 lumen output at a neutral 4500K colour temperature delivers bright, comfortable illumination suitable for living areas, kitchens, showrooms, retail spaces, and commercial environments where clear, natural-looking light is essential.
Featuring advanced COB LED technology, this downlight provides uniform, shadow-free illumination with a wide 120° beam angle, ensuring excellent light distribution across the installation area. The durable PKW construction with a clean white body ensures longevity and a discreet ceiling presence, while the substantial 207mm cutout size makes it suitable for larger recessed openings. With an IP20 rating for indoor use, a lifespan of up to 20,000 hours, and 15,000 on/off cycles, this fitting is designed for long-term reliability. The wide voltage compatibility (100-277V) adds versatility for various installation environments, making this V-Tac downlight a robust, energy-efficient solution for high-ceiling or large-area lighting requirements.
COB LED Technology: Chip on Board design delivers uniform, shadow-free illumination with exceptional colour consistency.
High Lumen Output: 3600 lumens from 30W – equivalent to 270W conventional lighting.
Neutral Colour Temperature: 4500K provides balanced, comfortable illumination suitable for diverse applications.
Wide Beam Angle: 120° beam angle ensures excellent area coverage with minimal shadows.
Energy Efficient: Substantial energy savings compared to traditional high-wattage alternatives.
Long Lifetime: Up to 20,000 hours operational life with 15,000 on/off cycles.
Wide Voltage Compatibility: Operates on 100-277V for versatile installation.
Large Cutout Size: 207mm hole cutout suitable for larger recessed openings.
| Specification | Details |
|---|---|
| Brand | V-Tac |
| Model | VT-26301 |
| Type | COB LED downlight |
| Power | 30W |
| Equivalent Wattage | 270W conventional |
| Lumen Output | 3600 lumens |
| Colour Temperature | 4500K (neutral white) |
| Beam Angle | 120 degrees |
| Material | PKW (white body) |
| Ingress Protection | IP20 |
| Lifetime | Up to 20,000 hours |
| On/Off Cycles | Up to 15,000 cycles |
| Cutout Size | 207mm diameter |
| Voltage | 100-277V AC |
| Energy Efficiency Class | D |
| Dimensions | Diameter: 220mm, Height: 103mm |
| Product Code | CIRCOB30 |
| Application | Living areas, kitchens, showrooms, retail spaces, commercial interiors, high-ceiling areas |
1. What does "equivalent to 270W" mean?
This means the 30W LED downlight produces a similar level of brightness (3600 lumens) as a traditional 270W incandescent or halogen light source, offering dramatic energy savings while maintaining high illumination levels.
2. What is the difference between COB LED and standard LED?
COB (Chip on Board) technology mounts multiple LED chips directly onto a single substrate, creating a uniform light source with minimal shadowing and superior colour consistency compared to standard LED arrays with individual visible diodes.
3. Is this downlight suitable for high ceilings?
With 3600 lumens output and a 120° beam angle, this downlight is well-suited for high-ceiling applications where powerful, wide-reaching illumination is required.
4. What size cutout is required for installation?
This fitting requires a hole cutout of 207mm diameter. Please ensure your ceiling opening matches this dimension before installation.
5. Can this downlight be dimmed?
This listing does not specify dimming capability. The product has an energy efficiency class D rating. If dimming functionality is required, please verify compatibility with the supplier before installation.
