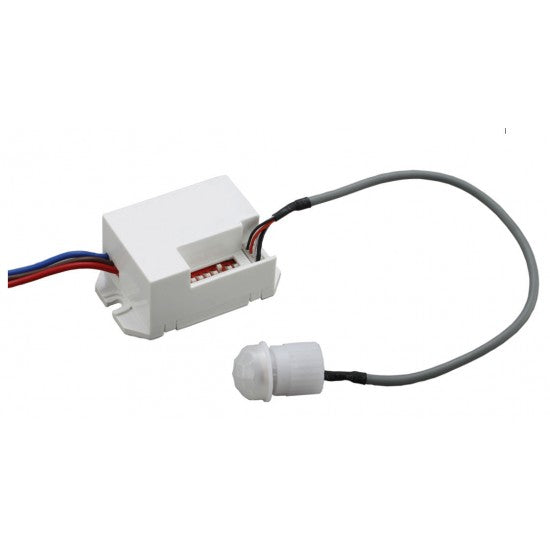

The UKEW™ mini removable PIR infrared motion sensor switch is a compact and versatile device designed to automate your indoor lighting for enhanced convenience and energy savings. Featuring full 360° detection within a 6-meter range, it automatically switches connected lights on when motion is detected and off after a set period. The sensor's "removable" design allows for flexible placement, as the detector unit can be discreetly mounted and positioned. It operates on standard 220-240V AC mains and can handle a substantial load of up to 800W, making it suitable for controlling multiple lights. You can easily adjust the time delay from 5 to 30 seconds. Designed for reliable indoor use, it operates in ambient light levels below 10 lux and temperatures from -10°C to +40°C, with an ideal mounting height between 2 and 4.5 meters. Backed by a two-year warranty, this sensor is a smart, reliable choice for automating lighting in hallways, stairwells, offices, and other indoor spaces.

Key Features of Mini PIR Motion Sensor Switch

• Full 360° Detection: Provides comprehensive coverage with a 6-meter detection range, eliminating blind spots.

• Removable Detector Design: The sensor unit can be discreetly positioned for optimal detection, separate from the main housing if needed.

• High Load Capacity: Handles loads up to 800W, suitable for controlling multiple lights or higher-wattage fittings.

• Adjustable Time Delay: Set the light 'on' duration from 5 to 30 seconds to suit your preference.

• Reliable Operation: Designed for indoor use with an ambient light threshold below 10 lux and operating temperature from -10°C to +40°C.

• Easy Installation: Compact size and standard wiring for straightforward integration into lighting circuits.

• Versatile Applications: Ideal for hallways, stairwells, corridors, offices, bathrooms, and storage areas.

• Energy Saving: Automatically ensures lights are only on when the space is occupied.

• 2 Year Warranty: Manufacturer guarantee for peace of mind.

Technical Specifications

Frequently Asked Questions (FAQs)

1. What does "removable" mean for this motion sensor?
It means the PIR detector unit can be detached from its base or housing. This allows you to install the base and then position the small sensor head discreetly for the best detection angle, even in tight or awkward spaces.

2. Where is the best place to install this sensor?
It is designed for indoor use. Ideal locations include hallways, stairwells, landings, corridors, offices, bathrooms, and storage rooms. Mount it at the recommended height of 2-4.5 meters for optimal 360° coverage.

3. How do I adjust how long the light stays on?
The sensor has an adjustable time delay control. You can turn a small screwdriver-operated potentiometer on the sensor to set the 'on' time from a minimum of 5 seconds up to a maximum of 30 seconds.

4. Can this sensor switch control any type of light?
It can control a total load of up to 800W. This makes it suitable for most LED, fluorescent, and incandescent lighting circuits, provided the total wattage of the connected lights does not exceed 800W.

5. Will the sensor work during the day?
The sensor has an ambient light threshold of <10 lux. This means it is designed to operate in relatively dark conditions. In its default mode, it will likely only activate lights when the ambient light level is low (e.g., at night or in a dark room).
