Overview

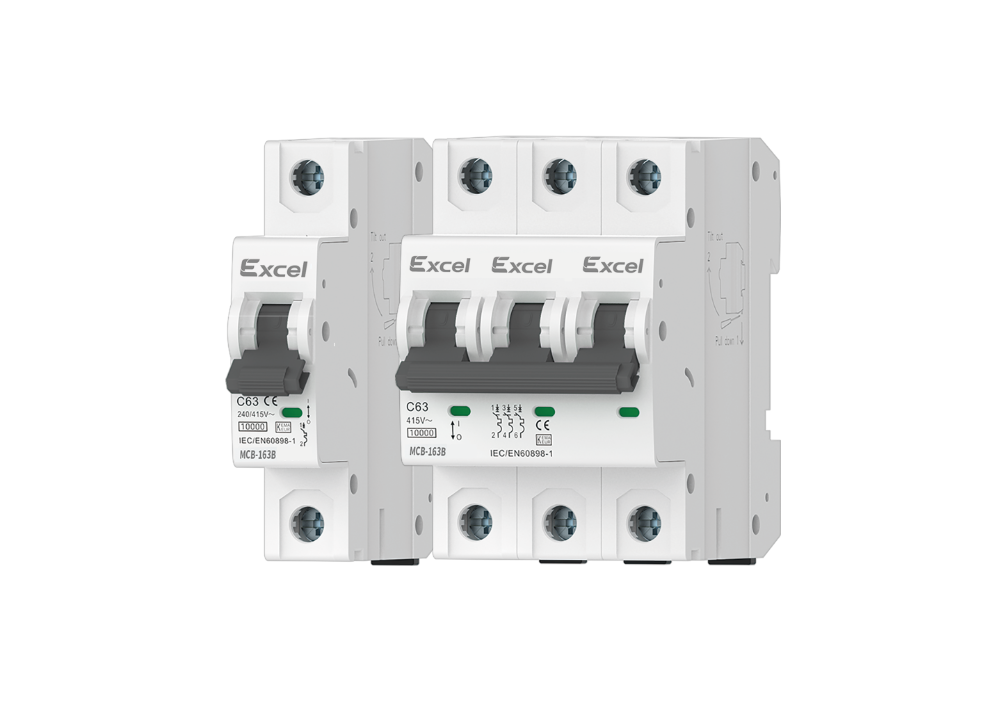

The 6kA 32A Miniature Circuit Breaker represents a fundamental component in modern electrical safety systems, engineered to deliver robust protection against both short-circuit events and overload conditions across domestic, commercial, and industrial installations. With a substantial 6kA breaking capacity, this MCB effectively interrupts high fault currents before they can cause damage to wiring, equipment, or pose fire hazards. The thermal magnetic trip mechanism ensures precise response to different fault types: the thermal element responds to prolonged overloads while the magnetic element reacts instantly to short-circuit conditions, providing comprehensive circuit protection.

Designed for versatility and compliance, this 32A MCB meets IEC60898-1 standards and carries both CE and UKCA certifications, confirming its suitability for European and UK electrical systems. The unit operates at 50/60Hz frequency and accommodates voltages of AC240V for single-pole applications or AC415V for multi-pole configurations. With an impressive electrical life of 10,000 operations and mechanical life of 20,000 cycles, this circuit breaker delivers long-term reliability. The IP20 protection grade and compatibility with 35mm DIN rail mounting simplify installation in consumer units and distribution boards, while the maximum 25mm² wiring capacity accommodates substantial conductor sizes for high-current circuits.

Key Features

• 6kA Breaking Capacity – Effectively interrupts high short-circuit currents up to 6,000 amperes for enhanced safety

• Thermal Magnetic Trip Mechanism – Combines bimetal thermal overload protection with electromagnetic short-circuit interruption

• Dual Certification – Compliant with IEC60898-1 standards and certified CE and UKCA for regulatory peace of mind

• Versatile Pole Configurations – Available in 1P, 2P, 3P, and 4P options to suit single-phase and three-phase systems

• Contact Status Indication – Clear visual window shows whether contacts are open or closed at a glance

• DIN Rail Mounting – Standard 35mm rail design enables quick installation in existing distribution boards

• High Cycle Life – Rated for 10,000 electrical operations and 20,000 mechanical operations for lasting durability

• Wide Temperature Tolerance – Operates reliably from -35°C to +70°C for various environmental conditions

Technical Specifications

Why Choose a 6kA 32A Miniature Circuit Breaker

Selecting the correct MCB rating for your electrical circuit is critical for both safety and operational reliability. A 32A rating makes this miniature circuit breaker ideally suited for dedicated high-power circuits including electric oven ranges, shower units, air conditioning systems, industrial machinery, and commercial kitchen equipment. The 6kA breaking capacity provides a substantial safety margin above typical domestic fault current levels, ensuring the breaker will safely clear even severe short-circuit events without welding contacts or rupturing its housing. Unlike fuses that require replacement after every fault, this resettable MCB can be simply switched back on after addressing the underlying issue, reducing downtime and maintenance costs.

Furthermore, the thermal magnetic trip mechanism offers two distinct layers of protection that work in harmony. The thermal element uses a bimetal strip that bends gradually under sustained overcurrent, mimicking the heat buildup in your wiring and tripping only when dangerous temperatures are reached. The magnetic element operates nearly instantaneously during short circuits, limiting let-through energy and protecting sensitive electronics downstream. With multiple trip curve options (B, C, and D curves available), you can precisely match the breaker's response characteristics to your specific load type—whether that is resistive lighting loads, motor-driven equipment with startup surges, or transformer-coupled devices. This level of customization, combined with UKCA and CE certification, makes this 6kA 32A MCB a professional-grade choice for any electrical installation requiring dependable, code-compliant overcurrent protection.

Frequently Asked Questions

1. What does the 6kA breaking capacity mean for my installation?
The 6kA rating indicates this MCB can safely interrupt a short-circuit current of up to 6,000 amperes without failing. This makes it suitable for domestic and light commercial applications where the available fault current at the distribution board typically remains below this threshold.

2. Which trip curve (B, C, or D) should I choose for my 32A circuit?
Choose B-curve (3-5x In) for general domestic lighting and socket circuits. Select C-curve (5-10x In) for circuits powering inductive loads like motors, fluorescent lighting, or small HVAC equipment. D-curve (10-20x In) is reserved for high inrush current applications like large transformers or welding equipment.

3. Can this MCB be installed in both single-phase and three-phase systems?
Yes, the 32A MCB is available in 1-pole for single-phase 230V applications or 3-pole/4-pole for three-phase 400V systems. For three-phase installations, use 3-pole for motor loads or 4-pole where neutral switching is required.

4. What is the difference between Ics and Icn short-circuit ratings?
Icn is the rated short-circuit breaking capacity for a single operation, while Ics is the service short-circuit breaking capacity – the fault current the MCB can interrupt and still remain functional. Both ratings are 6kA for this unit, indicating full performance after interruption.

5. How do I know when the MCB has tripped?
The contact status indicator window shows green when contacts are open (tripped or OFF position) and red when contacts are closed (ON position). Additionally, the toggle lever moves to the central tripped position between ON and OFF for easy identification.
