Overview

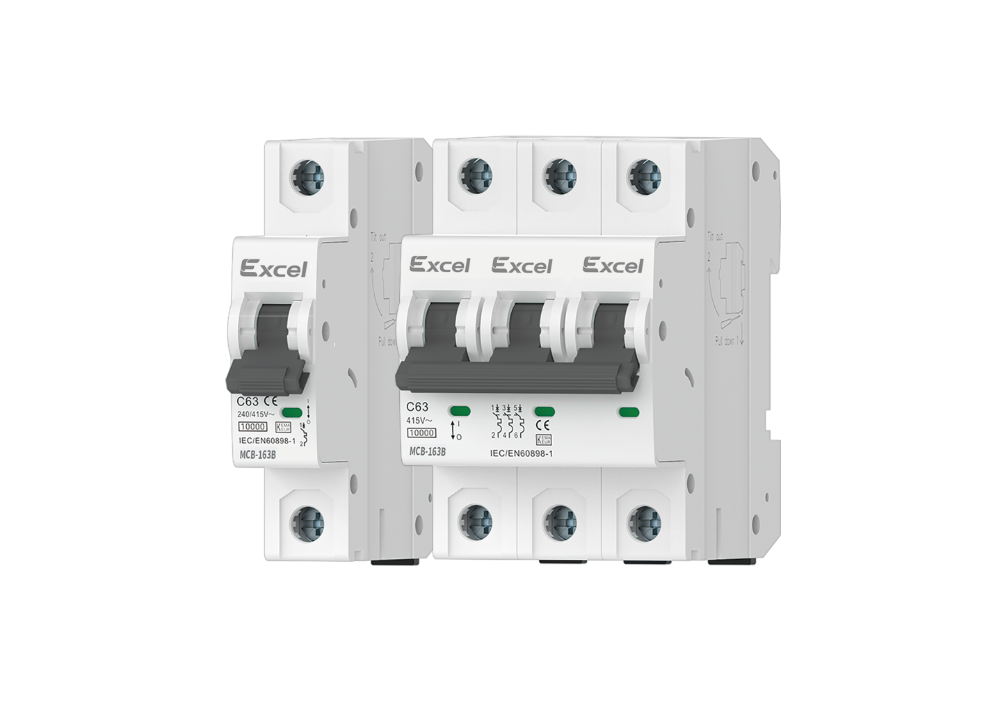

The 6kA 63A Miniature Circuit Breaker represents the maximum current rating available in the standard MCB form factor, engineered as the ultimate protection device for the most demanding electrical circuits before transitioning to moulded case circuit breakers (MCCBs). With a full 63-ampere rating, this MCB is the definitive choice for maximum-capacity applications including industrial main switchgear, large commercial distribution boards, heavy three-phase machinery up to 30kW, commercial HVAC rooftop units, electric vehicle fast charging hubs, agricultural grain drying equipment, and sub-main feeders supplying entire workshop or retail spaces. The robust 6kA breaking capacity ensures reliable interruption of severe short-circuit faults up to 6,000 amperes, providing maximum protection for both personnel and expensive capital equipment while maintaining the structural integrity of the breaker even under extreme fault conditions.

Manufactured to meet the most rigorous international safety standards, this maximum-rated 63A MCB fully complies with IEC60898-1 and carries both CE and UKCA certifications, ensuring legal compliance for installations across the United Kingdom and European markets. The sophisticated thermal magnetic trip mechanism, with a frame current matching the rated current at 63A, delivers two complementary layers of protection operating at the highest capacity of the product family. With support for 1, 2, 3, or 4-pole configurations, 50/60Hz frequency operation, and standard 35mm DIN rail mounting, this maximum-capacity circuit breaker delivers uncompromising professional-grade protection for any high-demand electrical installation requiring the highest current protection available in the miniature circuit breaker format.

Ultimate Protection for Maximum-Capacity Electrical Systems

Selecting a 63A rated MCB represents the highest level of overcurrent protection available in the miniature circuit breaker category before upgrading to larger, more expensive moulded case circuit breakers. This maximum current rating makes the breaker perfectly suited for the most demanding applications including main switchgear for small commercial premises, industrial machinery with 30kW three-phase motors, commercial kitchen suites with multiple high-power appliances, electric vehicle charging stations delivering 22kW AC or 15kW DC, large air conditioning and heat pump systems, agricultural equipment including grain dryers and ventilation fans, and sub-main distribution feeders supplying entire workshops, retail units, or office floors. The 6kA breaking capacity provides a substantial safety margin for commercial and light industrial fault current levels, ensuring the breaker will safely clear even the most severe short-circuit events without catastrophic failure, contact welding, or housing rupture. Unlike fuses that require complete replacement after every fault event, this maximum-rated resettable MCB can be simply switched back on after identifying and resolving the underlying issue, dramatically reducing downtime and ongoing maintenance costs for commercial and industrial operations.

Furthermore, the thermal magnetic trip mechanism at this maximum 63A rating offers two distinct layers of protection operating at the highest capacity of the product line. The thermal element uses a precision-calibrated bimetal strip that bends gradually under sustained overcurrent, accurately mimicking the heat buildup in your wiring insulation and tripping only when truly dangerous temperature thresholds are reached—preventing nuisance tripping while ensuring genuine protection for continuous loads operating at the 80% derating limit (50.4A maximum continuous load per regulations). The magnetic element operates nearly instantaneously during short-circuit conditions, limiting let-through energy to less than 1 millisecond and protecting sensitive downstream electronics and variable frequency drives from damage. With multiple trip curve options (B, C, and D curves available), you can precisely match the breaker's response characteristics to your specific load type—whether that is purely resistive heating elements for commercial ovens, motor-driven industrial equipment with substantial startup surges, or transformer-coupled devices with extreme inrush currents. This level of customization at the maximum 63A rating, combined with UKCA and CE certification, makes this 6kA 63A MCB the professional-grade ultimate choice for any electrical installation requiring the highest dependable, code-compliant overcurrent protection available in the miniature circuit breaker format.

Key Features

• Maximum 63 Ampere Rated Current – The highest rating in the MCB category, engineered for industrial main switchgear and heavy machinery up to 30kW

• 6kA Breaking Capacity – Safely interrupts short-circuit currents up to 6,000 amperes for comprehensive fault protection at maximum rating

• Frame Current 63A – Full frame utilization with no derating between frame and rated current for maximum capacity

• Thermal Magnetic Trip Mechanism – Combines precise bimetal thermal overload protection with ultra-fast electromagnetic short-circuit interruption

• Dual Certification – Fully compliant with IEC60898-1 standards and certified CE and UKCA for regulatory compliance

• Versatile Pole Configurations – Available in 1P, 2P, 3P, and 4P options to suit single-phase and three-phase maximum-capacity systems

• Contact Status Indication – Clear visual indicator window shows red for closed (ON) and green for open (OFF/tripped) contacts

• DIN Rail Mounting – Standard 35mm rail design enables quick, tool-friendly installation in consumer units and distribution boards

• Exceptional Cycle Life – Rated for 10,000 electrical operations and 20,000 mechanical operations for long-term durability

• Wide Temperature Tolerance – Operates reliably from -35°C to +70°C for various environmental conditions

• Multiple Trip Curves – Available in B, C, or D characteristics to match specific motor, lighting, or transformer loads

• Maximum Wiring Capacity – Accepts up to 25mm² conductors for minimal voltage drop on maximum-current circuits

Technical Specifications

• Product Type: Miniature Circuit Breaker (MCB) – Maximum Rating

• Rated Current: 63 Amperes

• Frame Current: 63A (100% frame utilization)

• Breaking Capacity: 6kA (Ics & Icn – both ratings equal)

• Number of Poles: 1P, 2P, 3P, 4P (selectable based on application)

• Rated Frequency: 50/60 Hz

• Rated Voltage: AC240V (1P) / AC415V (multi-pole)

• Rated Insulation Voltage: 690V

• Rated Impulse Withstand Voltage: 4kV

• Trip Characteristics: B, C, D Curves available

• Trip Form: Thermal magnetic trip

• Pollution Level: 2

• Electrical Life: 10,000 operations

• Mechanical Life: 20,000 operations

• Protection Grade: IP20

• Storage Temperature: -35°C to +70°C

• Installation Site Altitude: ≤2000m

• Terminal Type: Fixed with screw

• Maximum Wiring Capacity: 25mm²

• Maximum Limit Torque: 2.5 Nm

• Installation Category: Class II, III

• Installation Method: 35mm standard DIN rail

• Incoming Method: Upper or lower terminals (bidirectional)

• Standards Compliance: IEC60898-1

• Certifications: CE, UKCA

Frequently Asked Questions

1. What is the maximum continuous load I can safely run on this 63A MCB?
For continuous loads operating for 3+ hours (EV chargers, industrial machinery, commercial ovens, lighting), UK wiring regulations (BS 7671) require derating to 80% of rated current. For this 63A MCB, the maximum continuous load is 50.4A (approximately 11.6kW at 230V single-phase or 35kW at 400V three-phase). For true 63A continuous loads, you must upgrade to an 80A or 100A MCCB.

2. Why is 63A the maximum rating for an MCB, and what comes after that?
The IEC60898-1 standard that governs miniature circuit breakers defines 63A as the maximum rated current for the MCB form factor. Beyond 63A, you enter the realm of MCCBs (Moulded Case Circuit Breakers) which have larger physical dimensions, higher breaking capacities (typically 10kA to 100kA+), and different mounting requirements. If your application requires more than 63A, select an MCCB instead.

3. What is the minimum cable size required for a 63A circuit protected by this MCB?
For a 63A circuit, the minimum recommended cable size is 16mm² for standard PVC-insulated copper conductors in open air or free space. For longer runs exceeding 30 metres, or for cables installed in thermal insulation or conduit with other circuits, 25mm² is required to prevent excessive voltage drop (maximum 3% for power circuits) and ensure adequate fault current carrying capacity. This MCB accepts up to 25mm² directly into its terminals.

4. Can I use this 63A MCB as a main switch for my small commercial distribution board?
Yes, absolutely. A 63A MCB is commonly used as the main incoming switch for small commercial distribution boards, retail units, workshops, and agricultural buildings. For this application, select a 2-pole (single-phase) or 4-pole (three-phase) version. However, ensure your upstream supply fuse or breaker is appropriately coordinated – typically 80A or 100A – to maintain selectivity and prevent nuisance tripping of upstream devices.

5. How do I correctly select between B, C, and D curve for my 63A maximum-capacity application?
Select B-curve (3-5x 63A = 189-315A) for purely resistive maximum-capacity loads like large commercial water heaters, industrial ovens, and electric furnaces. Select C-curve (5-10x 63A = 315-630A) for general industrial motor loads, large HVAC equipment, workshop machinery, and EV charging stations – this is the most common and recommended choice for 63A applications. Select D-curve (10-20x 63A = 630-1260A) for extreme high-inrush equipment like large transformers, X-ray machines, welding equipment, and motors with very high starting currents (cranes, lifts, large industrial compressors). For 63A motor circuits, always consult motor nameplate starting current data before selecting between C and D curves.
