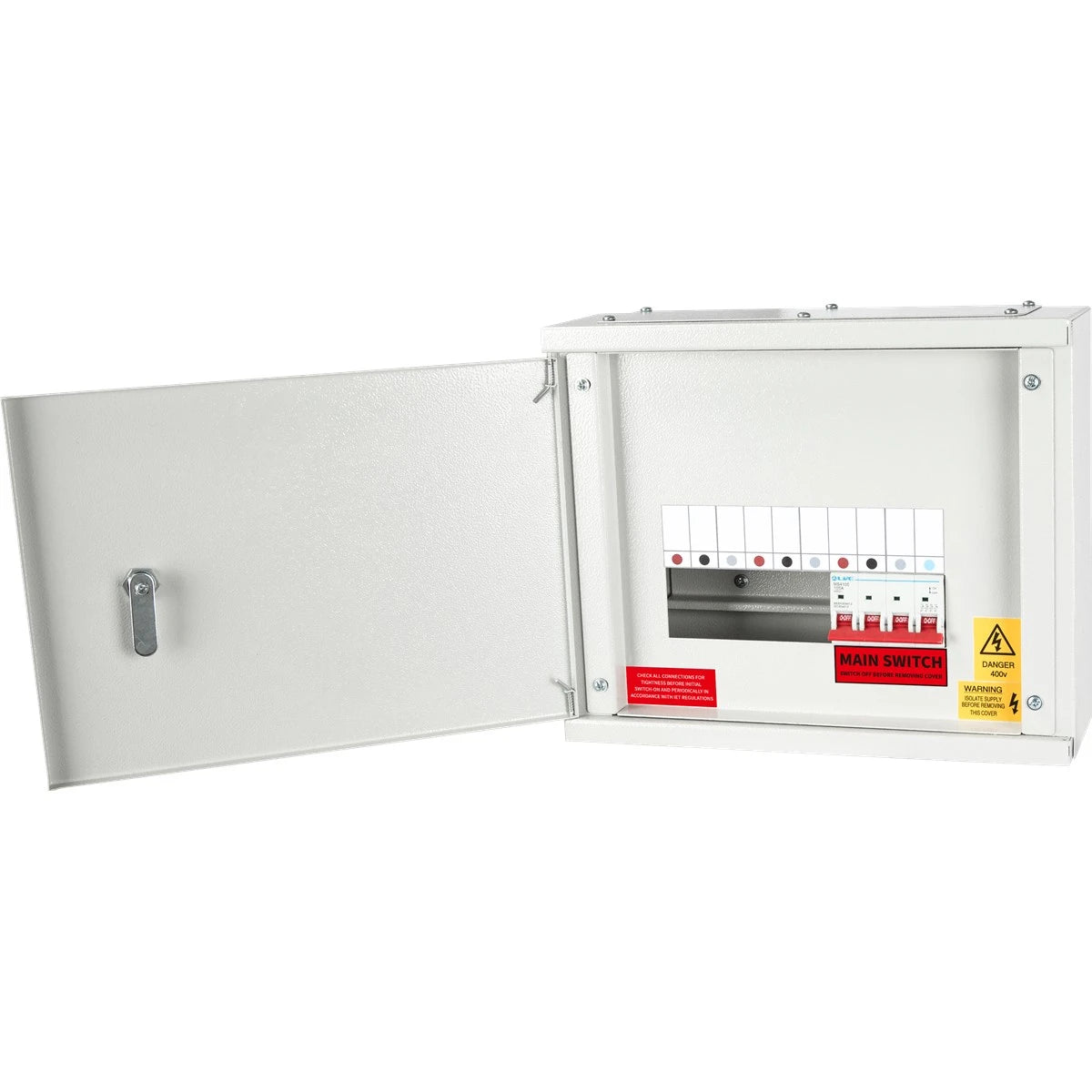

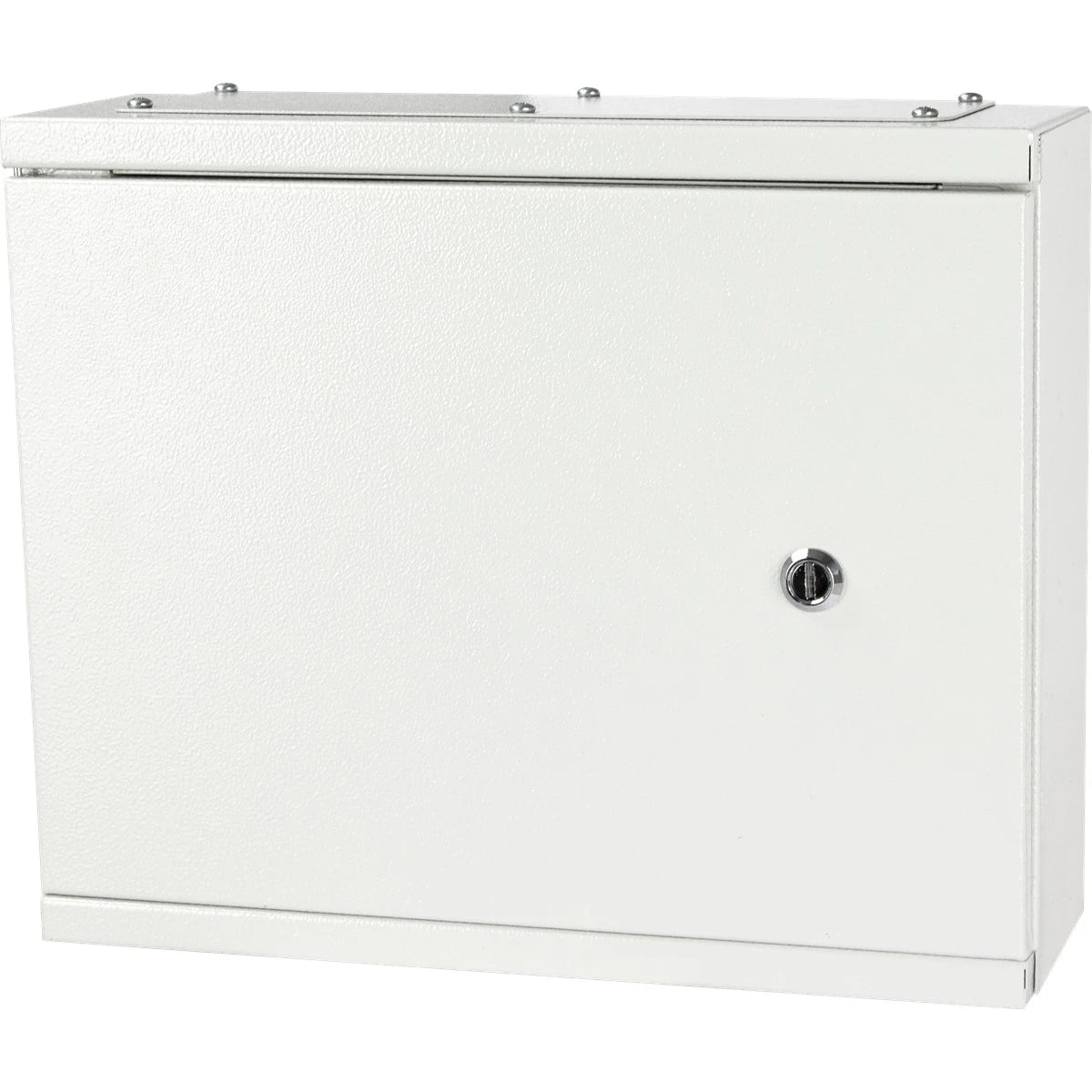

Live TPNH02-100 2 Way Horizontal TP&N 100A Distribution Board

Live TPNH02-100 2 Way Horizontal TP&N 100A Distribution Board

£40.80
£40.80
Sold out
Shipping calculated at checkout.

Custom printed panels are non-returnable.

Please upload the image, photo, or logo you would like printed on the LED panel.

Recommended image size:• 600 × 600 pixels or higher resolutionAccepted file formats:• JPG• PNG• PDF

Availability: Low stock: 67 left
Vendor: LIVE ELECTRIC
Category: Distribution Board
Tags: live electrical

Shipping Policy

Once you receive your order confirmation email, your order will be processed within 2–3 business days (excluding weekends and public holidays).

Installation & Safety

Installation must be carried out by a qualified electrician.
Ensure power is switched off before installation.
Suitable for indoor use.

View full product details

Overview

The Live TPNH02-100 2 Way Horizontal Distribution Board is a compact and efficient solution for managing three-phase electrical distribution in smaller installations. Designed with practicality in mind, this horizontal unit is ideal for environments where space is limited but reliable power control is essential. Its 2-way configuration makes it suitable for targeted circuit distribution while maintaining high safety standards.

Built to comply with BS EN61439-1 & 3 standards, this distribution board ensures dependable performance and enhanced protection. Featuring a 100A 4-pole switch disconnector incomer, along with full internal shrouding, it provides secure operation. The thoughtful design, including easy wall mounting and simplified cable access, makes installation quick and convenient for professionals.

Key Features

  • 2-way horizontal distribution board for compact installations
  • Supplied with 100A 4-pole switch disconnector incomer
  • Complete shrouding for main incomer and internal links
  • Removable gland plate for easy cable entry
  • Keyhole fixing system for quick and secure wall mounting
  • Earth and neutral terminals positioned adjacent to MCBs/RCBOs for faster installation
  • Designed for three-phase TP&N systems
  • Space-saving and practical design
  • Manufactured to BS EN61439-1 & 3 standards

Technical Specifications

  • Current Rating: 100A maximum incomer
  • Number of Ways: 2
  • Incomer Type: 4 Pole Switch Disconnector
  • Type: Three Phase TP&N Horizontal Distribution Board
  • Standard Compliance: BS EN61439-1 & 3
  • Dimensions:
    • Height: 265mm
    • Width: 325mm
    • Depth: 103mm

Why Choose a Live TPNH02-100 Distribution Board

The Live TPNH02-100 is an excellent choice for installations requiring a compact yet reliable power distribution solution. Its horizontal design and small footprint make it ideal for limited spaces without compromising on safety or functionality.

With easy installation features such as keyhole mounting and accessible terminals, this distribution board reduces installation time and effort. Its robust construction and compliance with industry standards ensure long-term reliability, making it a practical option for both new installations and system upgrades.

FAQs

1. What type of installations is this board suitable for?
It is ideal for smaller commercial or industrial setups requiring limited circuit distribution.

2. What is the capacity of the incomer?
The board includes a 100A 4-pole switch disconnector incomer.

3. Is it easy to install?
Yes, it features keyhole fixing and accessible terminals for quick and simple installation.

4. Does it support three-phase systems?
Yes, it is designed for three-phase TP&N electrical systems.

5. Is it compliant with safety standards?
Yes, it meets BS EN61439-1 & 3 standards for safety and performance.
