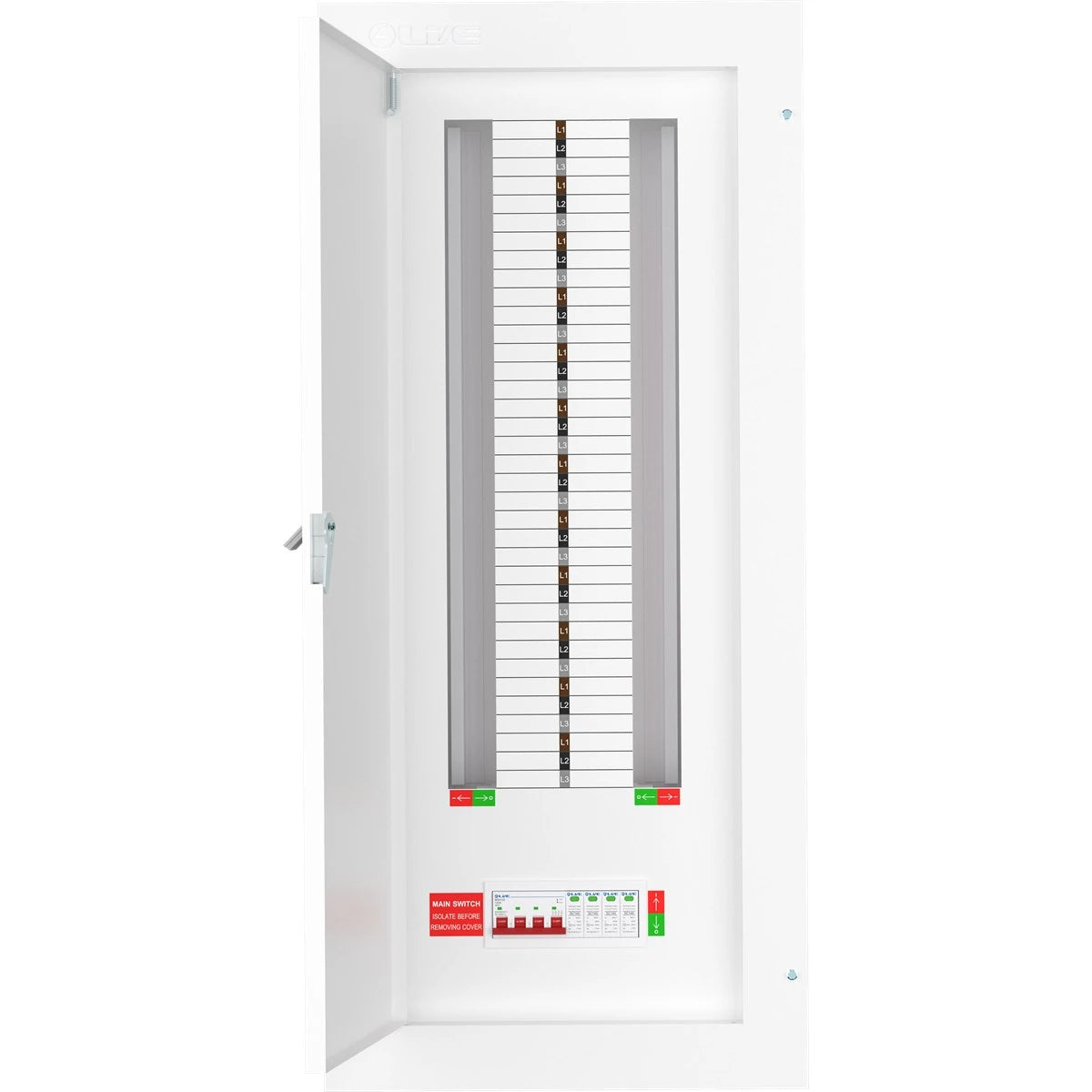

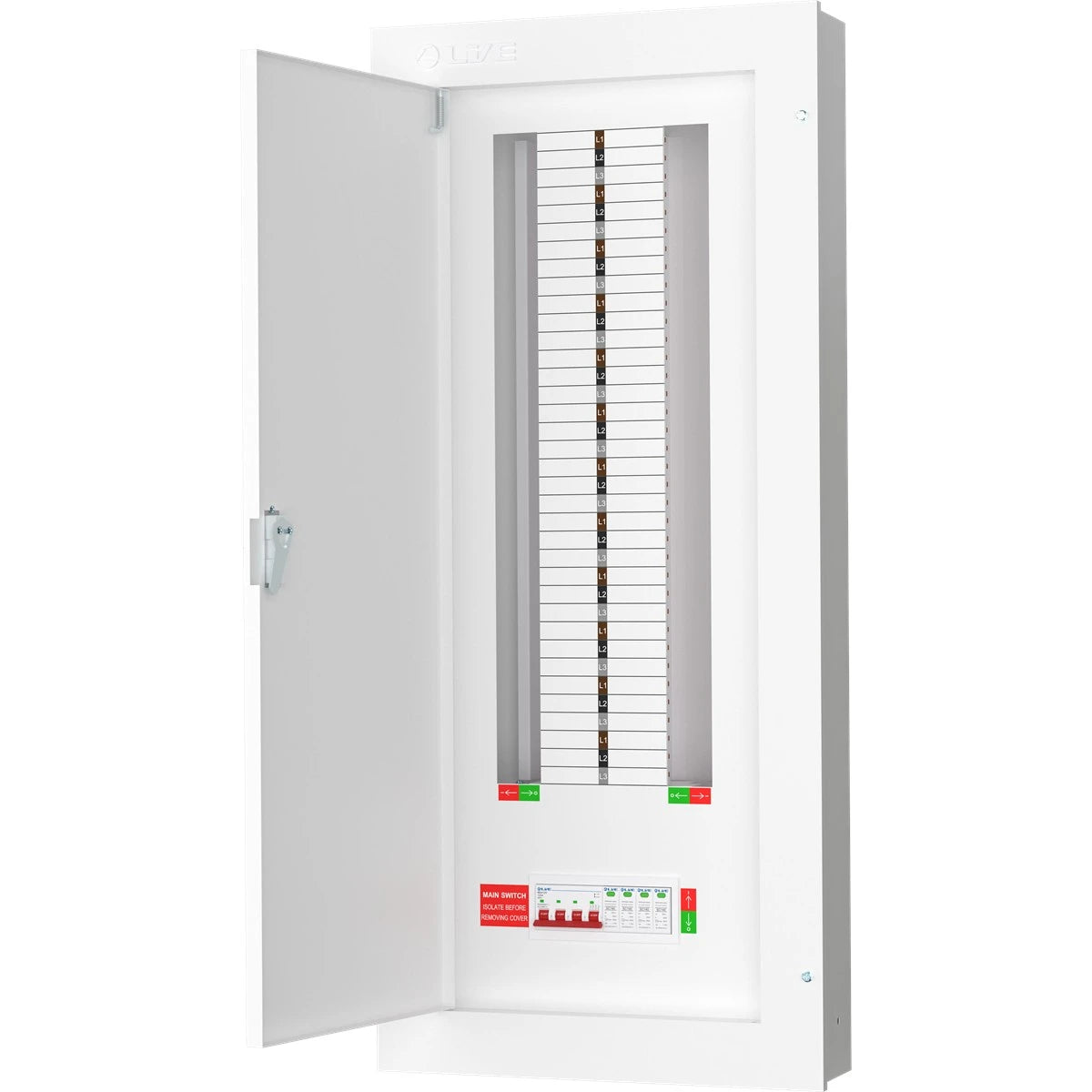

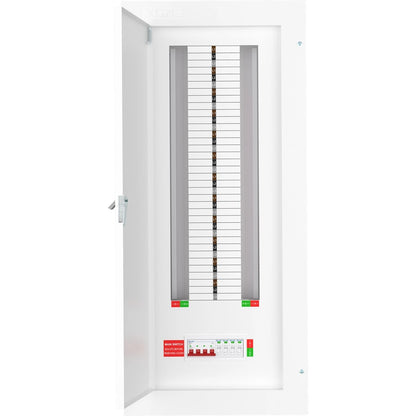

Live TPN24-125S 24 Way TP&N 125A Distribution Board with SPD

Live TPN24-125S 24 Way TP&N 125A Distribution Board with SPD

£322.90
£322.90
Sold out
Shipping calculated at checkout.

Custom printed panels are non-returnable.

Please upload the image, photo, or logo you would like printed on the LED panel.

Recommended image size:• 600 × 600 pixels or higher resolutionAccepted file formats:• JPG• PNG• PDF

Availability: Low stock: 87 left
Vendor: LIVE ELECTRIC
Category: Distribution Board
Tags: live electrical

Shipping Policy

Once you receive your order confirmation email, your order will be processed within 2–3 business days (excluding weekends and public holidays).

Installation & Safety

Installation must be carried out by a qualified electrician.
Ensure power is switched off before installation.
Suitable for indoor use.

View full product details

Overview

The Live TPN24-125S 24 Way Distribution Board is a high-capacity and safety-focused solution for three-phase electrical distribution. Designed for demanding commercial and industrial environments, it incorporates a 20/40kA double pole Surge Protection Device (SPD) to safeguard electrical systems against transient surges and voltage spikes. Its 24-way configuration allows for extensive circuit management, making it ideal for large installations.

Built in compliance with BS EN61439-3 standards, this distribution board combines durability with advanced safety features. The fully enclosed busbar and complete internal shrouding ensure maximum protection during operation and maintenance. With a 125A main switch incomer and user-friendly installation features such as a removable gland plate, it provides both reliability and ease of use.

Key Features

  • 24-way configuration for large-scale circuit distribution
  • Supplied with 125A main switch incomer
  • Integrated 20/40kA double pole Surge Protection Device (SPD)
  • Fully enclosed busbar for enhanced safety
  • Complete shrouding for incomer and internal components
  • Dual-section neutral and earth terminals on both sides
  • Removable gland plate for easy cable entry
  • Designed for three-phase TP&N systems
  • Compliant with BS EN61439-3 standards

Technical Specifications

  • Rated Voltage: AC 380V / 415V
  • Frequency: 50/60Hz
  • Maximum Loading Current: 125A / 250A
  • Number of Ways: 24
  • Surge Protection: 20/40kA Double Pole SPD
  • Type: Three Phase TP&N Distribution Board
  • Standard Compliance: BS EN61439-3
  • Dimensions:
    • Height: 1046mm
    • Width: 465mm
    • Depth: 105mm

Why Choose a Live TPN24-125S Distribution Board

The Live TPN24-125S distribution board is an excellent choice for professionals who require both high-capacity power distribution and built-in surge protection. The integrated SPD eliminates the need for additional protective devices, saving time and installation costs while enhancing system safety.

Its robust construction, compliance with industry standards, and installer-friendly features make it a dependable option for modern electrical systems. Whether for new installations or upgrades, it ensures long-lasting performance and reliable protection.

FAQs

1. What is the advantage of the built-in SPD?
The integrated SPD protects electrical systems and connected equipment from power surges and transient voltages.

2. Is this suitable for large installations?
Yes, its 24-way configuration makes it ideal for large commercial and industrial applications.

3. What is the rating of the main switch?
It comes with a 125A main switch incomer for efficient power management.

4. Is it compliant with safety standards?
Yes, it meets BS EN61439-3 standards for safety and reliability.

5. Is installation easy for electricians?
Yes, features like removable gland plates and accessible terminals simplify installation and maintenance.
