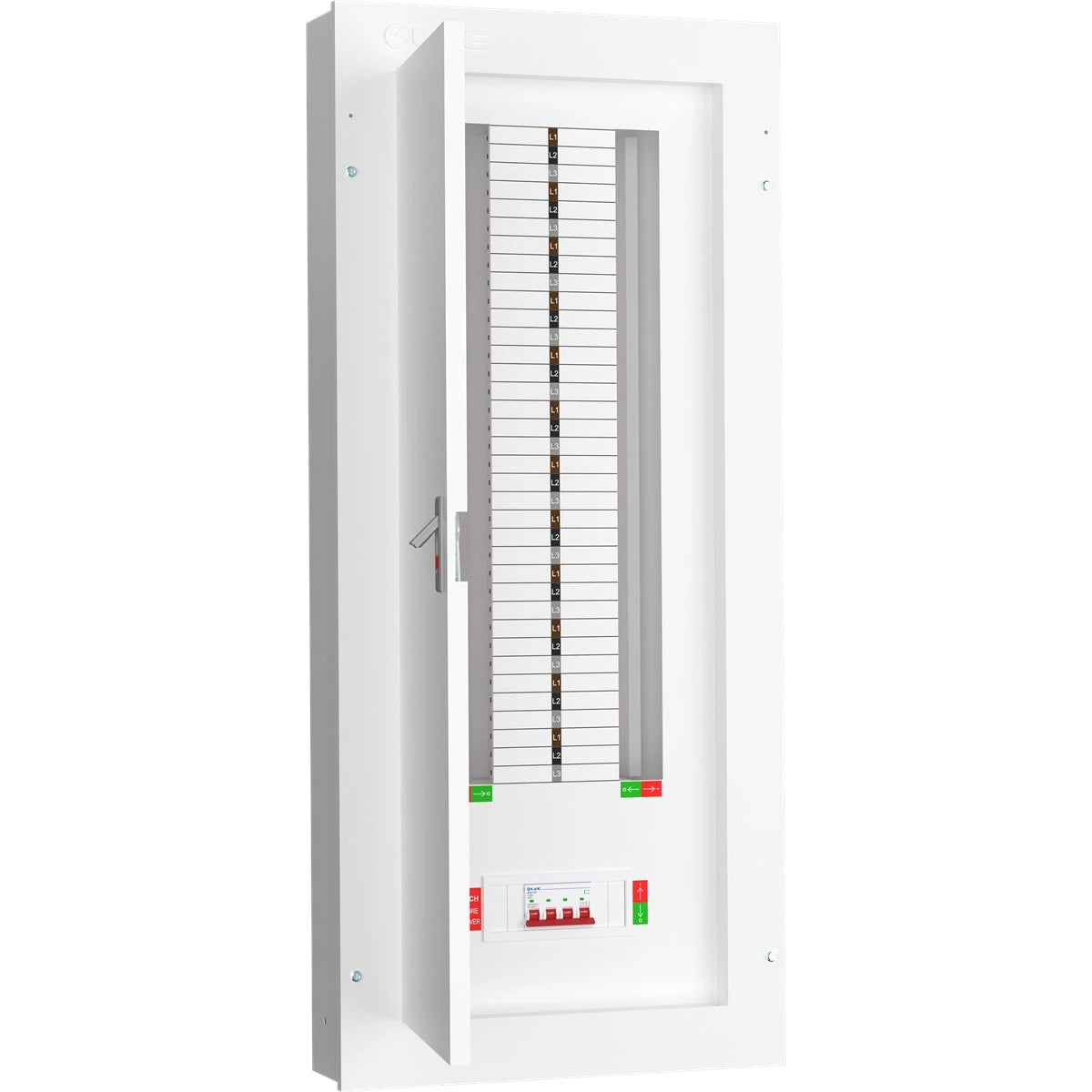

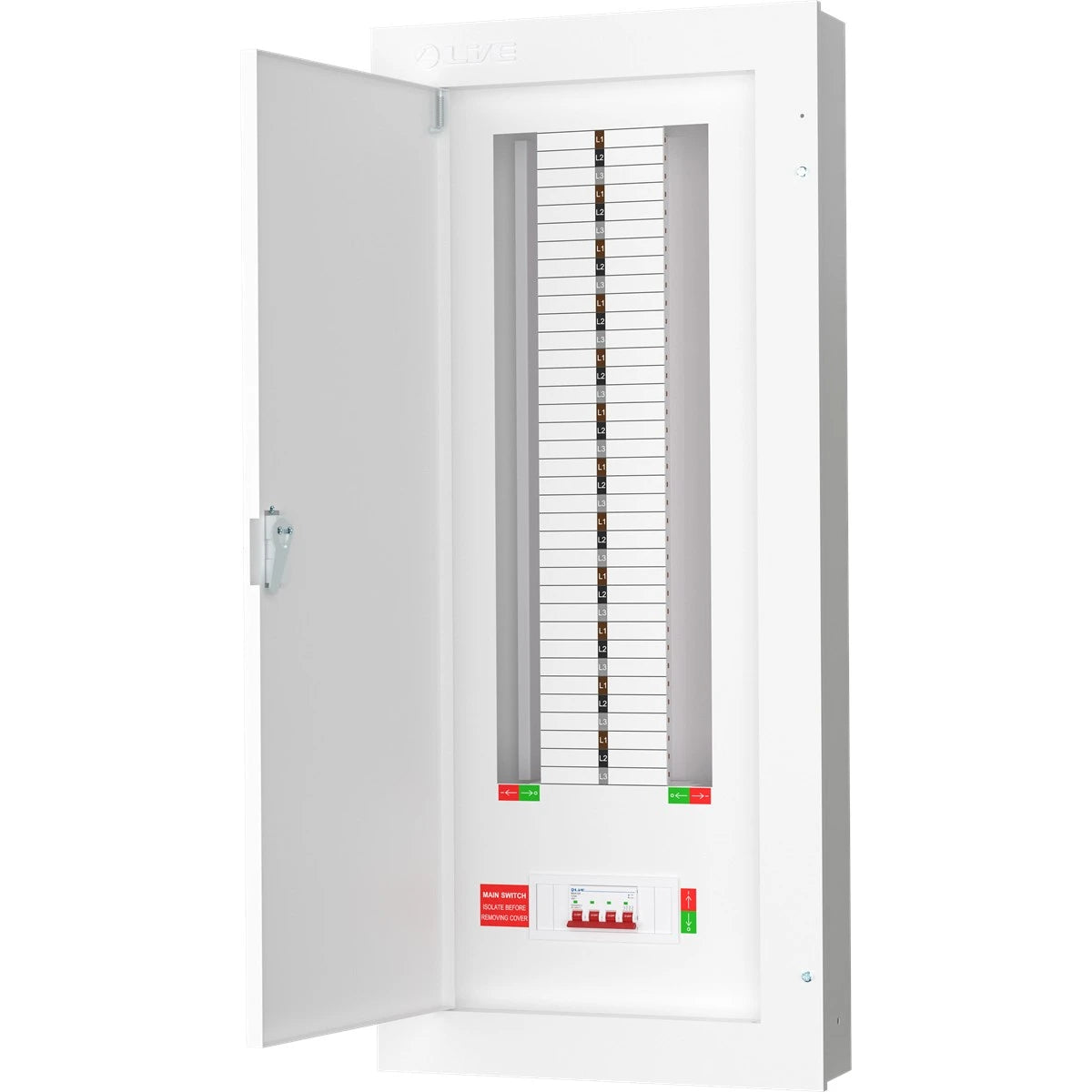

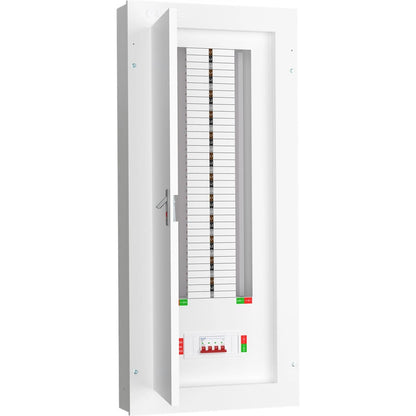

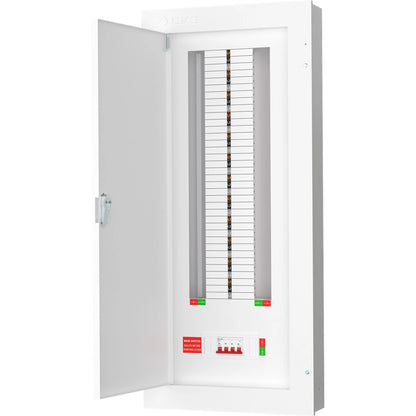

Live TPN24-125 24 Way TP&N 125A Three Phase Distribution Board

Live TPN24-125 24 Way TP&N 125A Three Phase Distribution Board

£257.85
£257.85
Sold out
Shipping calculated at checkout.

Custom printed panels are non-returnable.

Please upload the image, photo, or logo you would like printed on the LED panel.

Recommended image size:• 600 × 600 pixels or higher resolutionAccepted file formats:• JPG• PNG• PDF

Availability: Low stock: 88 left
Vendor: LIVE ELECTRIC
Category: Distribution Board
Tags: live electrical

Shipping Policy

Once you receive your order confirmation email, your order will be processed within 2–3 business days (excluding weekends and public holidays).

Installation & Safety

Installation must be carried out by a qualified electrician.
Ensure power is switched off before installation.
Suitable for indoor use.

View full product details

Overview

The Live TPN24-125 24 Way Distribution Board is a high-capacity solution designed to handle complex three-phase electrical systems in commercial and industrial settings. With its 24-way configuration, it provides extensive circuit distribution, making it ideal for large-scale installations that require organized and efficient power management.

Manufactured in accordance with BS EN61439-3 standards, this distribution board emphasizes safety, durability, and performance. It features a fully enclosed busbar system and complete internal shrouding to minimize risk during operation. Equipped with a 125A main switch incomer and practical installation features, it offers both reliability and convenience for modern electrical infrastructure.

Key Features

  • 24-way configuration for large-scale circuit distribution
  • Supplied with 125A main switch incomer
  • Fully enclosed busbar for enhanced safety
  • Complete shrouding for incomer and internal connections
  • Dual-section neutral and earth terminals on both sides
  • Removable gland plate for easy and flexible cable entry
  • Designed for three-phase TP&N systems
  • Strong and durable construction
  • Compliant with BS EN61439-3 standards

Technical Specifications

  • Rated Voltage: AC 380V / 415V
  • Frequency: 50/60Hz
  • Maximum Loading Current: 125A / 250A
  • Number of Ways: 24
  • Type: Three Phase TP&N Distribution Board
  • Standard Compliance: BS EN61439-3
  • Dimensions:
    • Height: 1046mm
    • Width: 465mm
    • Depth: 105mm

Why Choose a Live TPN24-125 Distribution Board

The Live TPN24-125 distribution board is an excellent choice for projects requiring extensive circuit management and reliable power distribution. Its 24-way design allows for efficient handling of multiple circuits, making it suitable for larger commercial and industrial applications.

With its focus on safety, ease of installation, and high-quality construction, this distribution board ensures long-term performance. It offers a practical and dependable solution for professionals seeking a compliant and efficient electrical distribution system.

FAQs

1. What type of installations is this board best suited for?
It is ideal for large commercial and industrial three-phase electrical systems requiring multiple circuits.

2. Does it include a main switch incomer?
Yes, it comes with a 125A main switch incomer for efficient power control.

3. How many circuits can it support?
The board supports up to 24 outgoing circuits for extensive distribution.

4. Is the unit designed with safety in mind?
Yes, it includes a fully enclosed busbar and internal shrouding for enhanced protection.

5. Does it meet industry standards?
Yes, it complies with BS EN61439-3 standards for safety and reliability.
