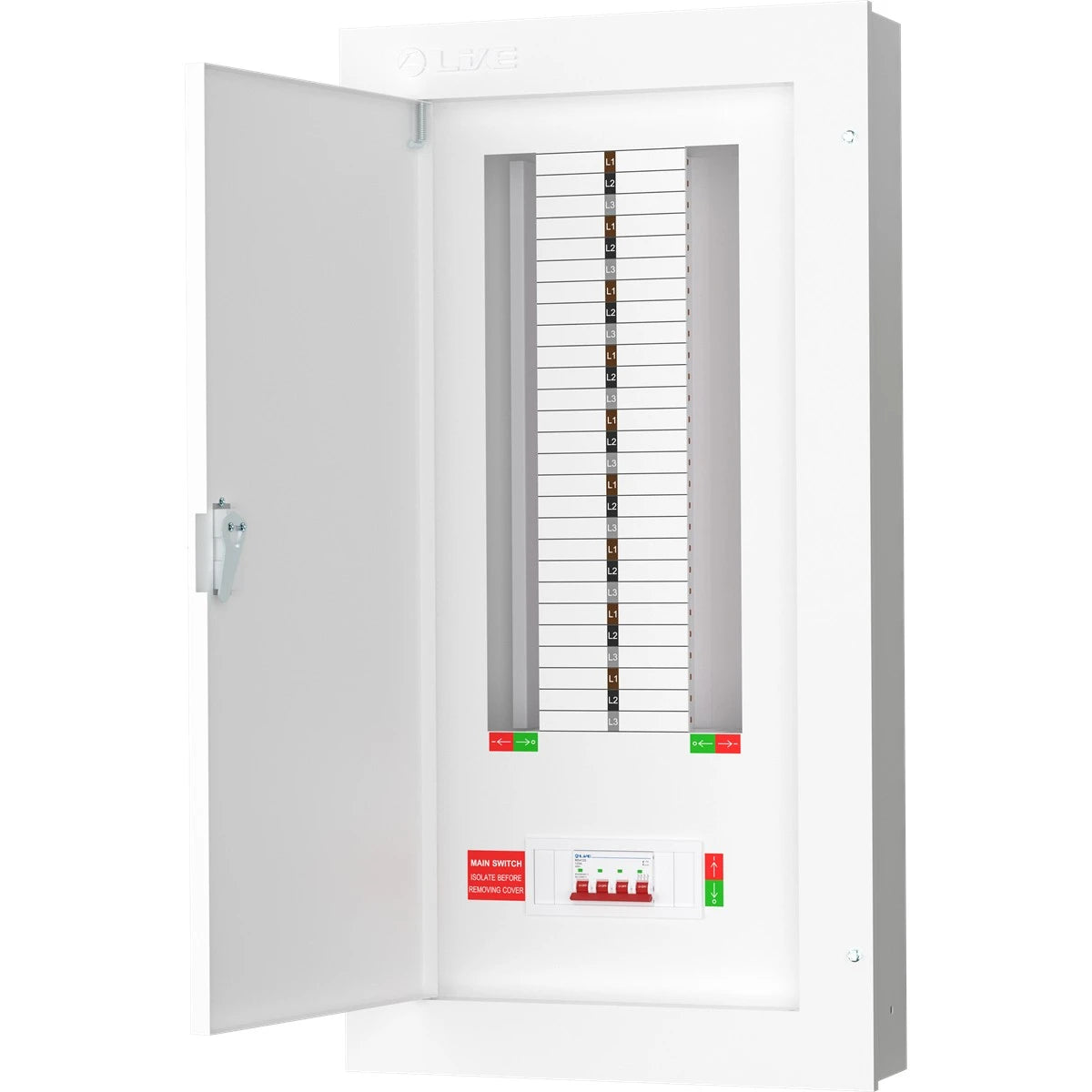

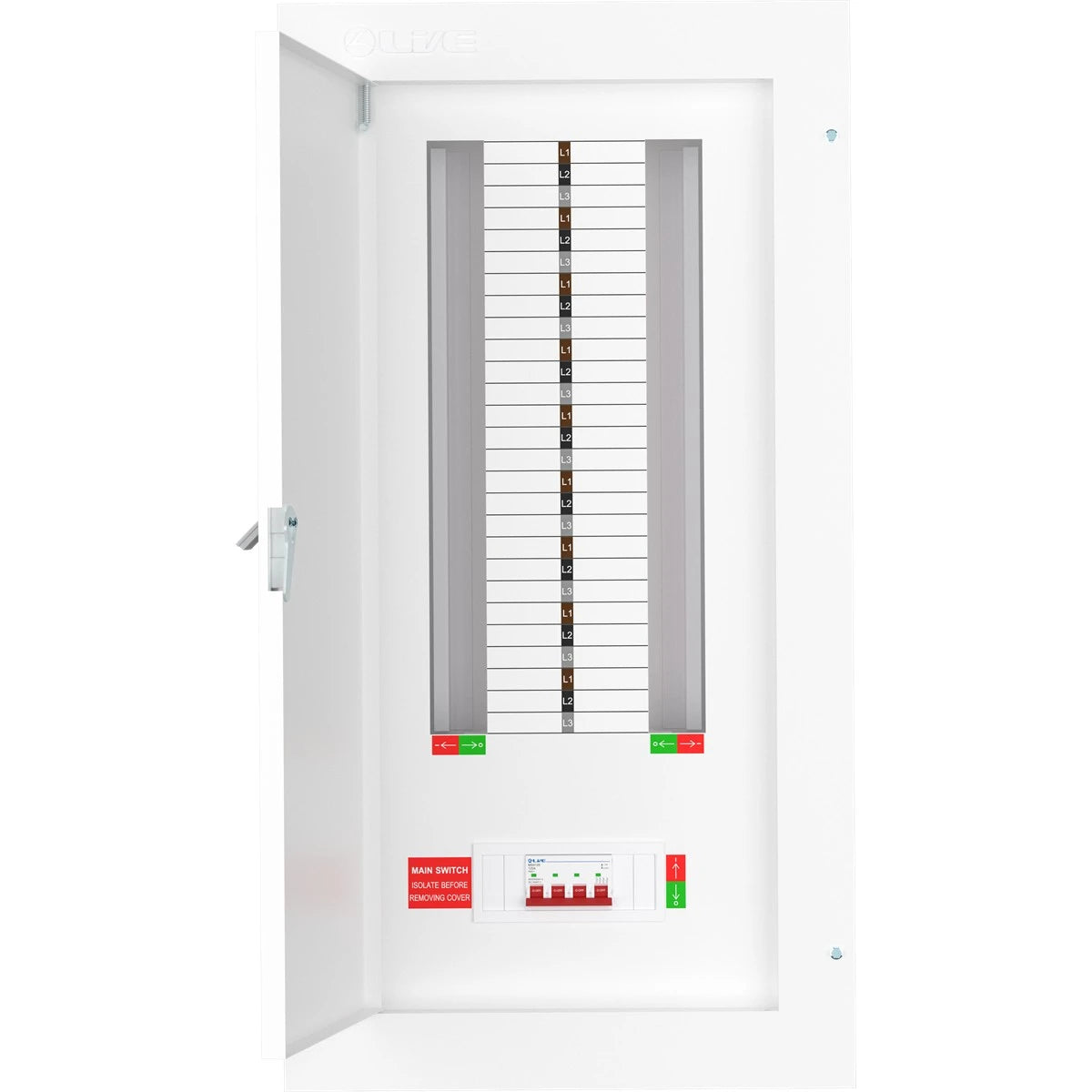

Live TPN18-125 18 Way Three Phase TP&N 125A Distribution Board

Overview

The Live TPN18-125 18 Way Distribution Board is a dependable and high-capacity solution for managing three-phase electrical systems in commercial and industrial environments. Designed for efficiency and safety, it features a robust structure with a fully enclosed busbar and complete shrouding, ensuring optimal protection for both users and electrical components. Its 18-way configuration allows for greater circuit distribution, making it ideal for larger installations.

Built to meet BS EN61439-3 standards, this distribution board offers consistent performance and compliance with modern electrical safety regulations. The inclusion of a 125A main switch incomer enhances control and reliability, while its practical design elements—such as removable gland plates—make installation and maintenance straightforward and efficient.

Key Features

• 18-way design for expanded circuit distribution
• Supplied with 125A main switch incomer
• Fully enclosed busbar for improved operational safety
• Complete shrouding for incomer and internal links
• Dual-section neutral and earth terminals on both sides
• Removable gland plate for flexible cable entry
• Designed for three-phase TP&N electrical systems
• Durable and compact construction
• Compliant with BS EN61439-3 standards

Technical Specifications

• Rated Voltage: AC 380V / 415V
• Frequency: 50/60Hz
• Maximum Loading Current: 125A / 250A
• Number of Ways: 18
• Type: Three Phase TP&N Distribution Board
• Standard Compliance: BS EN61439-3
• Dimensions:
  • Height: 884mm
  • Width: 465mm
  • Depth: 105mm

Why Choose a Live TPN18-125 Distribution Board

The Live TPN18-125 distribution board is engineered to deliver reliable and efficient power distribution for demanding environments. Its enhanced capacity and structured layout make it ideal for projects requiring multiple outgoing circuits without compromising safety or performance.

With high-quality materials, advanced safety features, and easy installation options, this distribution board ensures long-term reliability. It is a practical choice for electricians and contractors seeking a trusted and compliant solution for modern electrical systems.

FAQs

1. What makes this distribution board suitable for large installations?
Its 18-way configuration allows for more circuits, making it ideal for larger commercial or industrial setups.

2. Does it include a main switch incomer?
Yes, it comes equipped with a 125A main switch incomer for effective power management.

3. Is the unit safe to operate?
Yes, it features a fully enclosed busbar and complete shrouding for enhanced safety.

4. Can it support different current loads?
Yes, it supports maximum loading currents up to 125A/250A depending on application.

5. Is installation straightforward?
Yes, the removable gland plate and accessible terminal layout simplify installation and maintenance.
