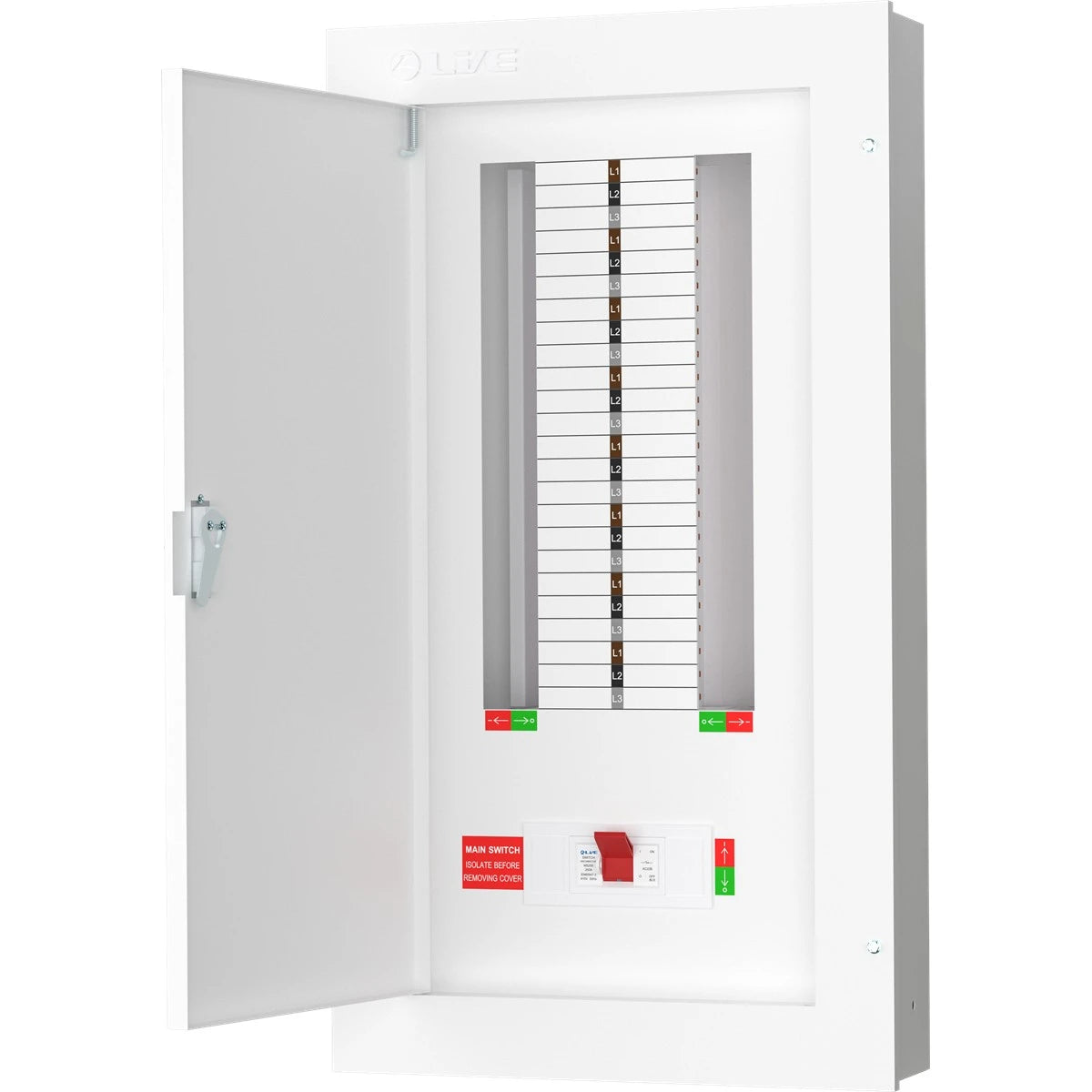

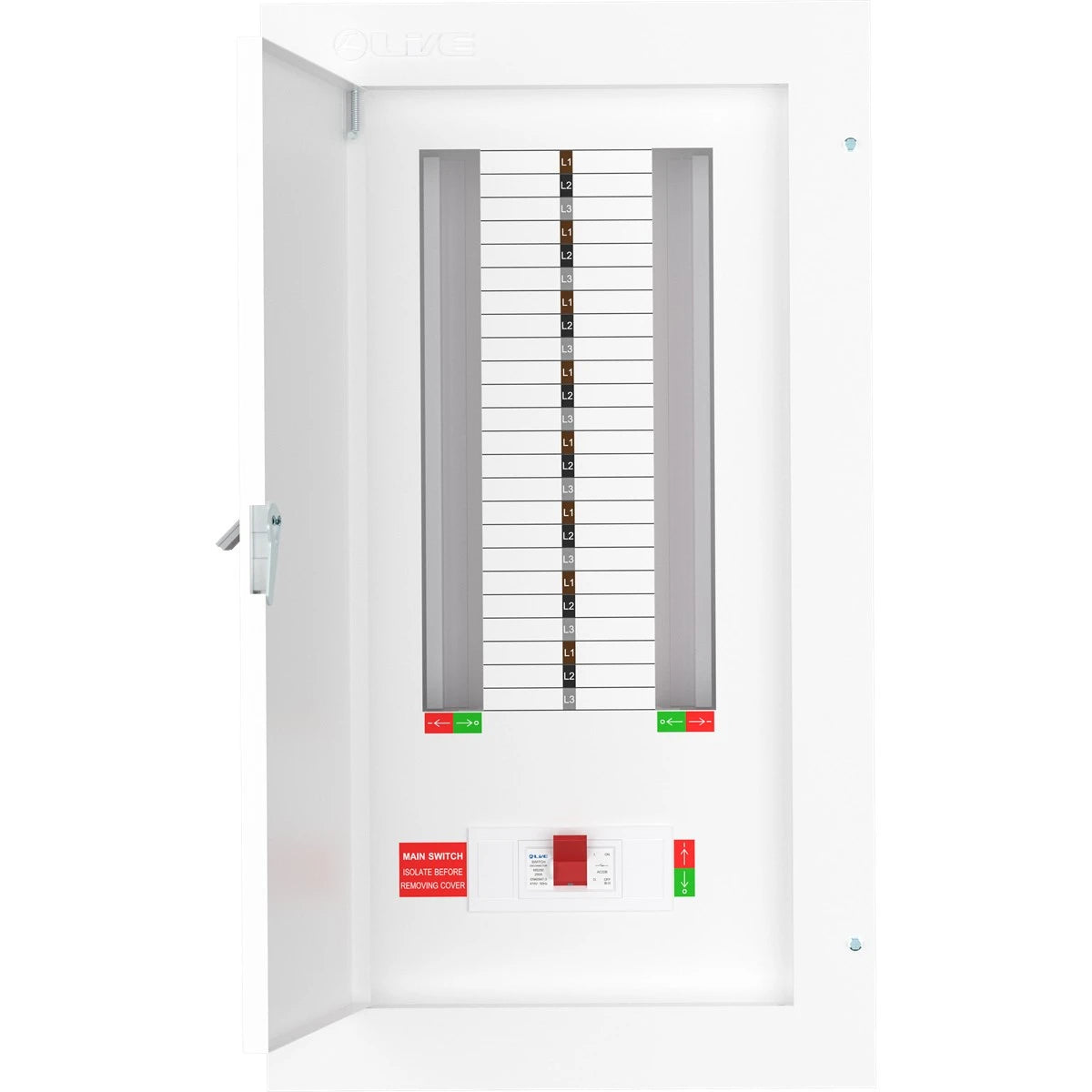

Live TPN16-250 16 Way Three Phase TP&N 250A Distribution Board

Live TPN16-250 16 Way Three Phase TP&N 250A Distribution Board

£330.55
£330.55
Sold out
Shipping calculated at checkout.

Custom printed panels are non-returnable.

Please upload the image, photo, or logo you would like printed on the LED panel.

Recommended image size:• 600 × 600 pixels or higher resolutionAccepted file formats:• JPG• PNG• PDF

Availability: Low stock: 56 left
Vendor: LIVE ELECTRIC
Category: Distribution Board
Tags: live electrical

Shipping Policy

Once you receive your order confirmation email, your order will be processed within 2–3 business days (excluding weekends and public holidays).

Installation & Safety

Installation must be carried out by a qualified electrician.
Ensure power is switched off before installation.
Suitable for indoor use.

View full product details

Overview

The Live TPN16-250 16 Way Distribution Board is a robust and efficient solution designed for managing three-phase electrical power in commercial and industrial environments. Built with durability and safety in mind, it features a fully enclosed busbar system and comprehensive shrouding, ensuring maximum protection during operation and maintenance. Its 16-way configuration allows for organized and scalable power distribution, making it suitable for a wide range of applications.

Engineered to meet BS EN61439-3 standards, this distribution board guarantees reliability and compliance with modern electrical requirements. With a powerful 250A main switch incomer and flexible cable entry options, it simplifies installation while maintaining high performance. Whether for new installations or upgrades, this unit delivers consistent and secure electrical distribution.

Key Features

  • 16-way configuration for efficient circuit distribution
  • Supplied with a 250A main switch incomer
  • Fully enclosed busbar for enhanced safety
  • Complete shrouding for main incomer and links
  • Dual-section neutral and earth terminals on both sides
  • Removable gland plate for easy cable management
  • Designed for three-phase TP&N systems
  • Durable construction for long-term use
  • Compliant with BS EN61439-3 standards

Technical Specifications

  • Rated Voltage: AC 380V / 415V
  • Frequency: 50/60Hz
  • Maximum Loading Current: 125A / 250A
  • Number of Ways: 16
  • Type: Three Phase TP&N Distribution Board
  • Standard Compliance: BS EN61439-3
  • Dimensions:
    • Height: 830mm
    • Width: 465mm
    • Depth: 120mm

Why Choose a Live TPN16-250 Distribution Board

Choosing the Live TPN16-250 ensures dependable electrical distribution backed by strong safety features and compliance with industry standards. Its thoughtful design minimizes installation time while maximizing protection for both users and equipment.

This distribution board stands out for its flexibility, durability, and ease of maintenance. With features like removable gland plates and accessible terminals, it simplifies electrical work while maintaining a high level of performance, making it a trusted choice for professionals.

FAQs

1. What type of system is this distribution board suitable for?
It is designed for three-phase TP&N electrical systems, commonly used in commercial and industrial setups.

2. Does the board come with a main switch?
Yes, it is supplied with a 250A main switch incomer for efficient power control.

3. Is it compliant with electrical standards?
Yes, it meets the BS EN61439-3 standard, ensuring safety and reliability.

4. Can cables be easily installed?
Yes, the removable gland plate allows for convenient and flexible cable entry.

5. What is the maximum current capacity?
The distribution board supports a maximum loading current of up to 250A.
