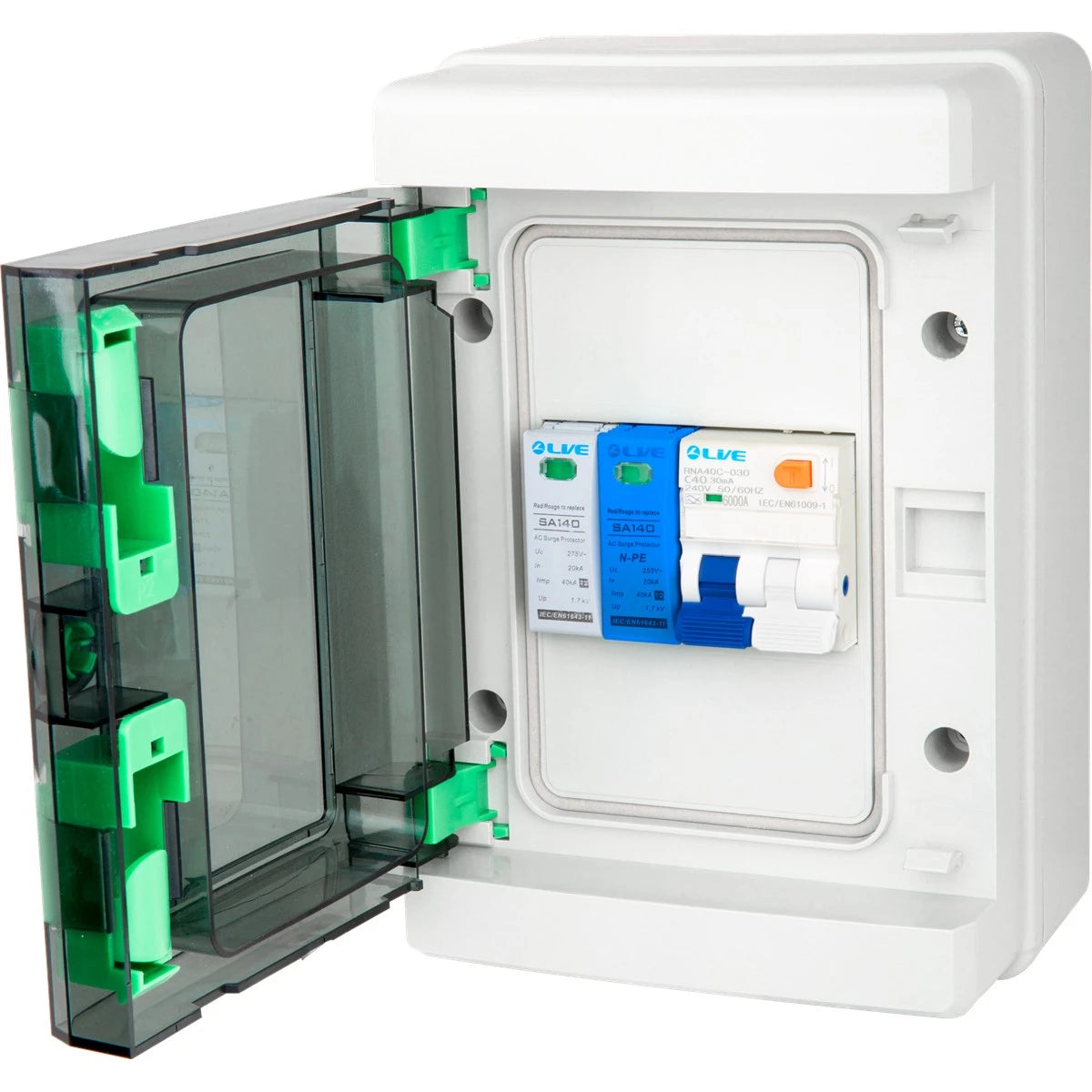

The Live LEV440SP-BP 4 Way Plastic EV Surge Consumer Unit is a specialist pre-configured distribution board designed specifically for electric vehicle charging installations. Housed in a robust IP65-rated weatherproof enclosure, this 4-way unit comes complete with a Type A RCBO (RNA40B-030) and integrated Surge Protection Device (SPD SA140 +1N), providing comprehensive protection for EV charging circuits. Manufactured to BS EN 61439-3, BS EN 61643-11, and BS EN 61009-1 standards, it ensures compliance with current regulations for EV supply equipment. The compact 4-way configuration with pre-installed DIN rail offers convenient mounting for additional modular components if required. Ideal for residential and commercial EV charging points, this consumer unit delivers reliable weatherproof protection with integrated surge suppression and RCBO safety in a single, easy-to-install package.
EV Charger Ready: Pre-configured specifically for electric vehicle charging installations.
IP65 Weatherproof Enclosure: Fully protected against dust and water jets, suitable for outdoor mounting.
Type A RCBO Included: 40A, 30mA RCBO (RNA40B-030) providing combined overcurrent and residual current protection.
Integrated Surge Protection Device: SPD SA140 +1N protects against voltage surges and transients.
4-Way Configuration: Compact design with space for additional modular components if required.
Pre-Installed DIN Rail: Ready for quick and easy installation of supplementary devices.
Compliant Manufacturing: Built to BS EN 61439-3, BS EN 61643-11, and BS EN 61009-1 standards.
B Curve Characteristic: Suitable for EV charger and general circuit protection.
Weatherproof Construction: Ideal for outdoor EV charging points, car parks, and external installations.
Compact Dimensions: Space-saving design: 140mm (W) x 206mm (H) x 95mm (D).
Complete Solution: Includes RCBO and SPD pre-fitted for simplified installation.
Modular Compatibility: Accepts standard DIN rail components for future expansion.
| Specification | Details |
|---|---|
| Brand | Live |
| Model | LEV440SP-BP |
| Product Type | 4 Way EV Surge Consumer Unit |
| Enclosure Rating | IP65 (Weatherproof) |
| Material | Plastic |
| Ways / Modules | 4 Way |
| RCBO Included | Type A, 40A, 30mA (RNA40B-030) |
| SPD Included | SA140 +1N Surge Protection Device |
| Curve Type | B Curve |
| Standards | BS EN 61439-3, BS EN 61643-11, BS EN 61009-1 |
| Mounting | Surface mount |
| DIN Rail | Pre-installed |
| Dimensions | 140mm (W) x 206mm (H) x 95mm (D) |
| Applications | Electric vehicle charging, outdoor power distribution |
| Warranty | Manufacturer guarantee |
1. Why is this consumer unit specifically designed for EV charging?
It includes pre-fitted components specifically required for EV charging installations - a 40A Type A RCBO for circuit protection and an SPD for surge protection, all housed in an IP65 weatherproof enclosure suitable for outdoor mounting alongside EV charge points.
2. What is the advantage of the integrated Surge Protection Device (SPD)?
The built-in SPD protects sensitive EV charging electronics from voltage surges caused by lightning strikes or grid switching, preventing damage to both the charger and the vehicle's charging system, and complying with modern wiring regulations.
3. Can additional circuits be added to this 4-way unit?
Yes, the 4-way configuration with pre-installed DIN rail allows for additional modular components such as extra MCBs or timers, providing flexibility for future expansion while maintaining the dedicated EV charging setup.
4. Is this unit suitable for outdoor installation alongside an EV charge point?
Absolutely, the IP65 rating provides complete protection against weather, making it ideal for wall mounting adjacent to outdoor EV chargers, car ports, and external parking areas without requiring additional enclosures.
5. What regulations does this consumer unit comply with for EV charging installations?
It is manufactured to BS EN 61439-3 (low-voltage switchgear), BS EN 61643-11 (surge protection), and BS EN 61009-11 (RCBOs), ensuring compliance with current UK wiring regulations for electric vehicle charging equipment.
