Live Electrical consumer unit with SPD for UK domestic installations. This 8 module metal unit provides 5 usable ways, a DP 100/125A main switch, and Type 2 20/40kA surge protection for reliable circuit safety.

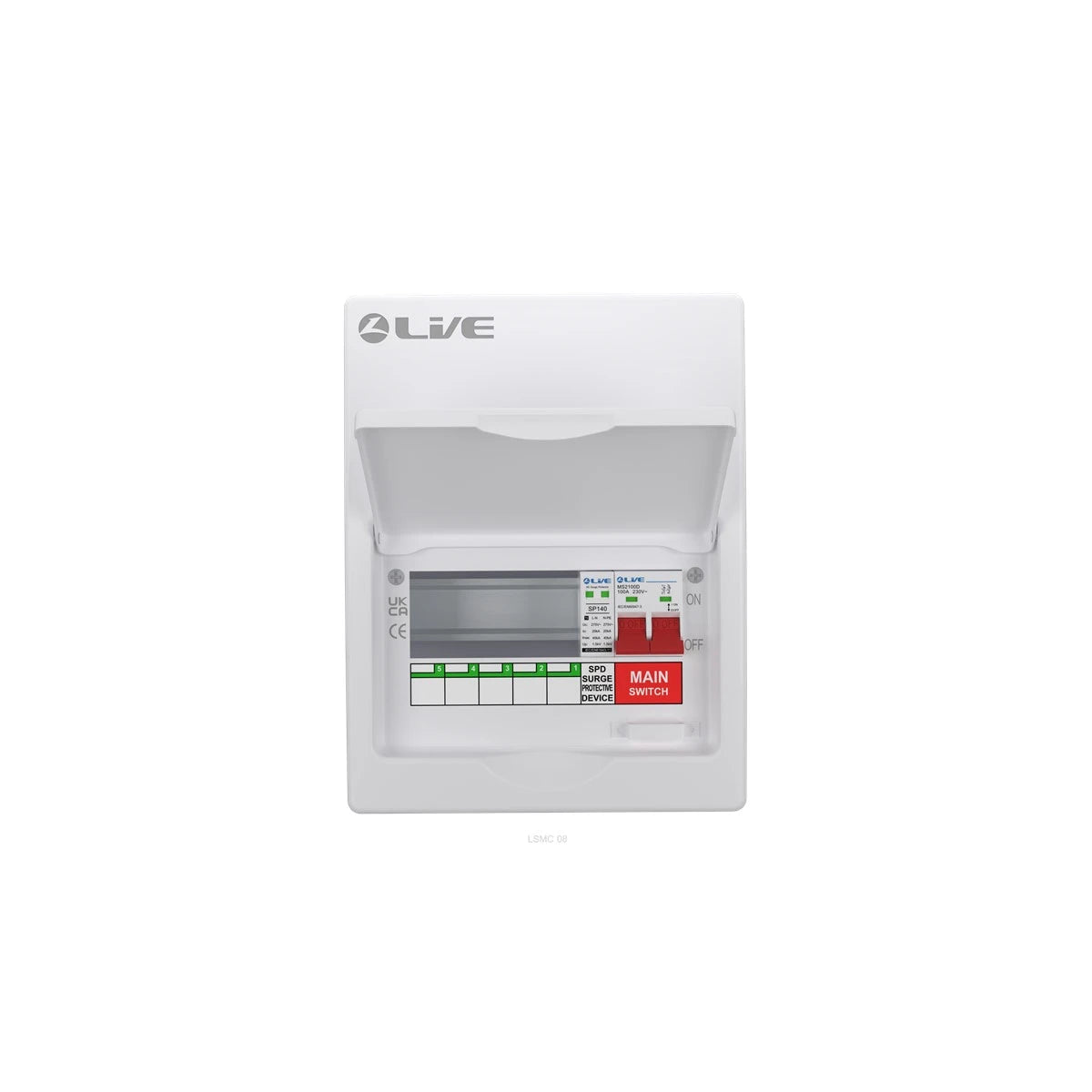

Live Electrical LSMC8M-SP 8 Module Metal Consumer Unit with SPD – 5 Usable Ways

This Live Electrical consumer unit is built for safe electrical distribution in UK homes. The metal enclosure supports fire safety, while the Type 2 SPD helps protect circuits and appliances from voltage surges. With 5 usable ways in an 8 module format, it’s ideal for domestic upgrades, extensions, and rewires.

Specifications (from competitor/manufacturer style)

• IP40

• Tail gland included

• Supplied with DP 100/125A main switch

• Supplied with single module SPD 20/40kA Type 2

• Multiple circular cable entry knock-outs

• Large and accessible wiring space

• Lockable lid

• Main switch terminal capacity: 100A = 35mm², 125A = 50mm²

• Dimensions: 208mm (W) × 270mm (H) × 110mm (D)

FAQs

Q: Why is it called an 8 module unit but only 5 usable ways?
A: The main switch and SPD take module space, leaving 5 usable ways for breakers.

Q: What does SPD do in a consumer unit?
A: The Type 2 SPD helps protect electrical circuits and appliances from voltage surges and spikes.

Q: Is this a UK consumer unit for domestic use?
A: Yes, it’s designed for UK domestic consumer unit installations like houses, flats, and extensions.

Q: Does it come with breakers installed?
A: No, it is supplied as a consumer unit enclosure with main switch and SPD—breakers are chosen and fitted by the electrician.

Q: Why choose a metal consumer unit?
A: Metal enclosures support improved fire safety and are commonly preferred for modern installations.

Q: Who should install this consumer unit?
A: A qualified electrician should install and certify it for safety and compliance.
