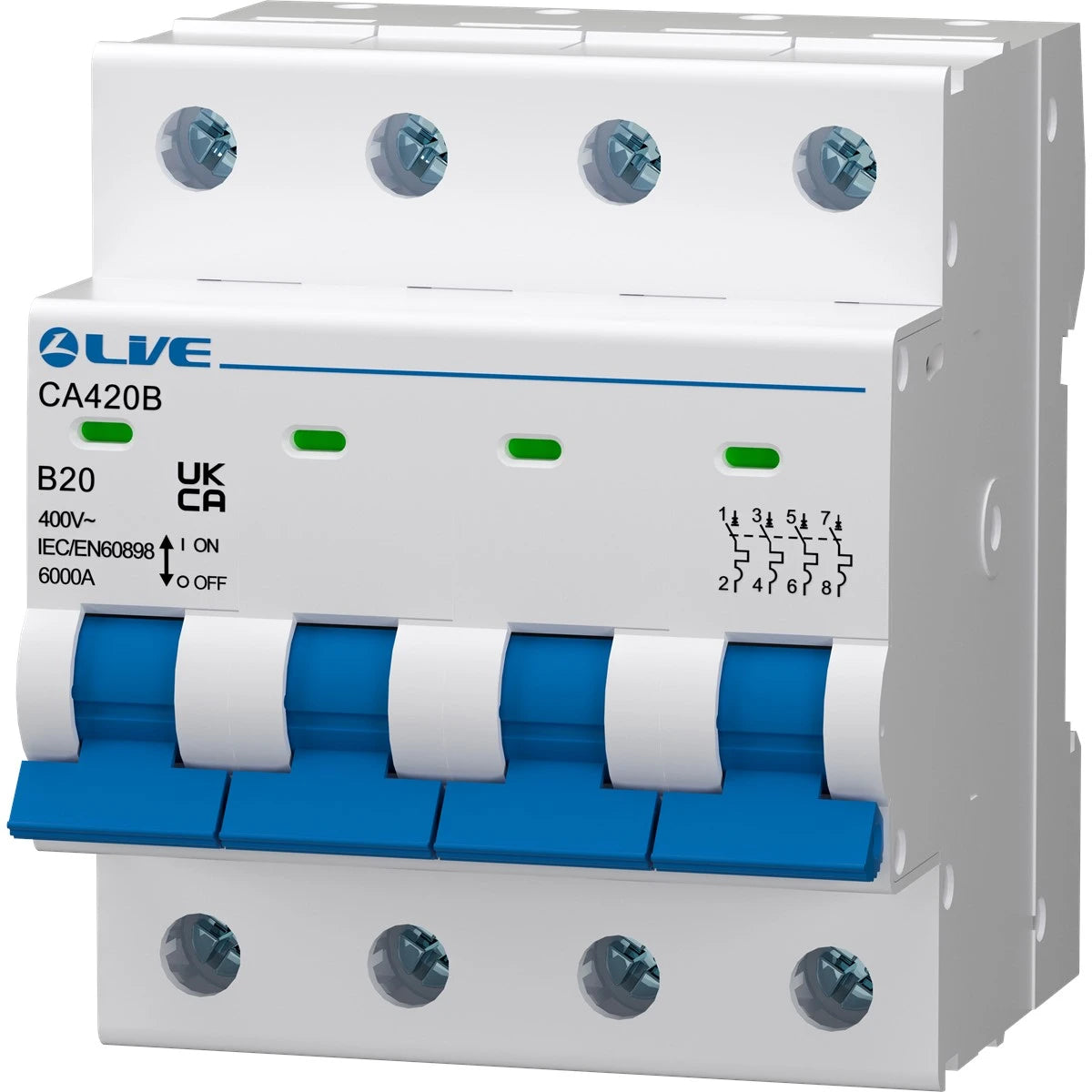

The Live CA420B 4 Pole MCB is a high-capacity miniature circuit breaker engineered to provide comprehensive protection for three-phase commercial electrical distribution systems requiring simultaneous neutral conductor switching. Rated at 20 Amps with a B-curve tripping characteristic, this 4-pole breaker safeguards all three phases and the neutral conductor on AC systems up to 400V at 50/60Hz frequency. It delivers robust protection against overloads and short circuits, making it the ideal choice for commercial main distribution boards, high-power resistive loads, large commercial kitchens, and applications where complete isolation of all conductors is essential for safety compliance. With a substantial 6kA breaking capacity and precision thermo-magnetic release, the CA420B ensures safety, reliability, and total circuit isolation for demanding commercial installations.

Key Features of Live CA420B 20A 4P MCB

• Complete 4-Pole Protection: Simultaneously protects and switches all three phases (L1, L2, L3) and the neutral (N) conductor, ensuring complete circuit isolation during fault conditions and maintenance procedures for high-power commercial applications.

• High-Capacity B-Curve Characteristic: Trips instantaneously at 3-5 times the rated current (60A to 100A), specifically calibrated for high-power resistive loads, commercial lighting, and general distribution applications with minimal inrush currents.

• Ideal Commercial Distribution Rating: 20A per pole provides substantial capacity for commercial main distribution boards, large retail spaces, restaurants, and high-power resistive equipment requiring neutral switching.

• Integrated Neutral Switching: Neutral pole ensures the neutral conductor is disconnected simultaneously with phases, preventing floating neutral conditions and ensuring complete safety during isolation and maintenance.

• Reliable Breaking Capacity: Certified 6kA rating ensures safe interruption of fault currents, protecting downstream equipment and ensuring personnel safety in commercial environments.

• Precision Thermo-Magnetic Release: Combines thermal bimetal strip for accurate time-delayed overload protection and magnetic solenoid for instantaneous short-circuit response across all four poles.

• Superior Electrical Isolation: With 4000V impulse withstand rating and 500V insulation voltage, providing excellent protection against voltage transients and power surges in commercial settings.

• Extended Operational Life: Engineered for 8,000 electrical operations, ensuring long-term reliability in commercial applications with regular switching requirements.

• Professional Installation: Standard DIN-rail mounting with IP20 finger-safe terminals and 16mm² wiring capacity for secure commercial panel integration.

Technical Specifications

Frequently Asked Questions (FAQs)

1. What are the primary applications for the Live CA420B 4 Pole 20A B-Curve MCB?
The CA420B 4-pole 20A breaker is perfectly suited for high-power commercial and light industrial applications requiring neutral switching. Ideal applications include:

• Commercial main distribution boards and sub-distribution boards

• Large retail stores, supermarkets, and shopping center tenancies

• Restaurants and commercial kitchens (large ovens, cooktops, water heaters)

• Large commercial lighting installations (sports halls, warehouses, exhibition centers)

• Three-phase socket outlet circuits in commercial premises

• HVAC equipment and large fan coil units

• Electric vehicle charging stations (multiple chargers)

• Commercial water heating systems and boilers

• Small commercial building mains protection

• Circuits in TN-S and TN-C-S systems requiring complete isolation

• Backup power changeover circuits requiring neutral switching

• Large workshops and retail spaces with three-phase supply

2. Why is a 20A 4-pole B-Curve MCB ideal for commercial main distribution?
Commercial main distribution applications benefit significantly from the CA420B's characteristics:

• Substantial capacity: 20A per phase provides approximately 4.6kW per phase (13.8kW total), ideal for small to medium commercial tenancies

• Main switch capability: Can serve as main isolation for commercial sub-distribution boards feeding multiple final circuits

• Neutral switching: Essential for compliance with modern electrical regulations requiring complete isolation of all live conductors

• B-Curve sensitivity: Perfect for predominantly resistive loads in commercial settings (lighting, heating, general power)

• Fault discrimination: Provides excellent coordination with downstream C-Curve breakers protecting motor circuits

• Simplified distribution: One 20A 4-pole breaker can feed multiple single-phase circuits balanced across phases

• Compliance: Meets requirements in many jurisdictions for simultaneous disconnection of all live conductors at distribution points

3. What is the power capacity of this 20A 4-pole MCB on a 3-phase system?
For a standard 400V three-phase system with 4-pole protection, the CA420B 20A can handle:

• Maximum resistive load: P = √3 × V × I = 1.732 × 400V × 20A = 13.86 kW

• Per phase capacity: 230V × 20A = 4.6 kW per phase

• For continuous operation (80% rule): Maximum continuous load should not exceed 16A per phase, equating to approximately 11.09 kW continuous resistive load

• Lighting applications: Can support approximately 450-500 LED downlights (30W each) or 100-120 fluorescent fittings (58W each)

• Commercial kitchen: Suitable for large ovens (5-8kW), commercial cooktops, and water heating equipment

• Socket outlets: Can supply multiple three-phase socket outlets in workshops or commercial spaces

• EV charging: Can support 2-3 single-phase EV chargers balanced across phases or one 11kW three-phase charger

4. When is 4-pole switching required for commercial main distribution?
Four-pole switching with breakers like the CA420B is required or strongly recommended in specific commercial scenarios per international standards (IEC 60364, and national regulations):

• TN-C-S systems: At the point of conversion to TN-S, 4-pole switching is often required to ensure proper isolation of the neutral at the distribution point

• IT earthing systems: Where the neutral is not directly earthed, complete isolation of all conductors is mandatory for main distribution

• Commercial buildings with mixed earthing systems: Where different parts of the installation use different earthing arrangements

• Generator and backup power systems: To ensure proper neutral switching between mains and generator sources at the main distribution level, preventing circulating currents and neutral voltage displacement

• Construction site temporary supplies: Main distribution for construction sites often requires 4-pole isolation per safety regulations

• Medical facilities: Main distribution to operating theaters and critical care areas may require complete isolation for patient safety

• Data centers: Critical power distribution main switches often specify 4-pole switching for maintenance safety

• Marinas and caravan parks: Main distribution boards typically require 4-pole isolation

• When specified by building regulations: Many modern commercial building codes require 4-pole isolation at main distribution points

• Renovation projects: When upgrading older commercial buildings to meet current code requirements

Always verify requirements with local electrical codes and standards applicable to your region and commercial application type.

5. What are the cable sizing recommendations for a 20A 4-pole commercial main distribution circuit?
For a 20A 4-pole MCB in commercial main distribution applications, proper cable sizing ensures safety, compliance, and long-term reliability:

Cable Sizing:

• Standard copper conductor: 4 mm² is recommended for 20A commercial circuits

• Minimum acceptable: 2.5 mm² for very short runs with ideal conditions, but 4 mm² is preferred for mechanical robustness

• The CA420B terminals accept cables up to 16 mm², offering flexibility for various installation scenarios

• Neutral conductor: Must be the same size as phase conductors for 4-pole circuits with switched neutral

• Voltage drop considerations for 20A:

  • 4mm²: Suitable for runs up to 30-35 meters

  • 6mm²: Recommended for longer runs up to 45-50 meters

  • 10mm²: For extended runs over 50 meters or where voltage drop is critical for sensitive equipment

Commercial Main Distribution Best Practices:

• Cable type: Use PVC insulated copper cables for general commercial installations; consider XLPE for higher temperature environments or where cable bundling requires higher ampacity

• Installation method: Consider derating factors for cables in conduit, trunking, on cable trays, or buried per IEC 60364

• Termination: Use appropriate cable glands and ensure proper torque settings (typically 2.5-3.5 Nm); consider torque wrench for critical connections

• Identification: Clearly label all phase (L1, L2, L3) and neutral (N) conductors with appropriate color coding (brown/black/grey for phases, blue for neutral) per IEC 60446

• Segregation: Maintain separation between power and data/communication cables to prevent electromagnetic interference

• Protection: Consider mechanical protection for cables in areas prone to damage, especially in commercial back-of-house areas

• Spare capacity: Consider installing slightly larger cables than minimum required to accommodate future load increases

Commercial Building Specific Considerations:

• Harmonic currents: In commercial buildings with significant electronic loads (computers, servers, LED lighting with poor power factor), neutral conductors may carry harmonic currents—consider 150% or 200% neutral capacity if harmonic loads are significant

• Earthing requirements: Ensure proper earthing and bonding per local regulations, with appropriate main earthing conductor sizing

• RCD protection: Where required by regulations for socket outlets or specific circuits, ensure proper coordination with upstream main breaker

• Discrimination: Ensure the 20A main breaker coordinates with downstream final circuit breakers (typically 6A, 10A, 16A) to minimize outage areas during faults

• Panel labeling: Maintain clear panel schedules and circuit identification for future modifications and emergency situations

• Inspection and testing: Regular thermal imaging of terminations in critical commercial installations is recommended, especially at main distribution points

• Accessibility: Ensure main isolation switches are readily accessible and clearly marked for emergency shutdown

Cable Selection Quick Reference:
