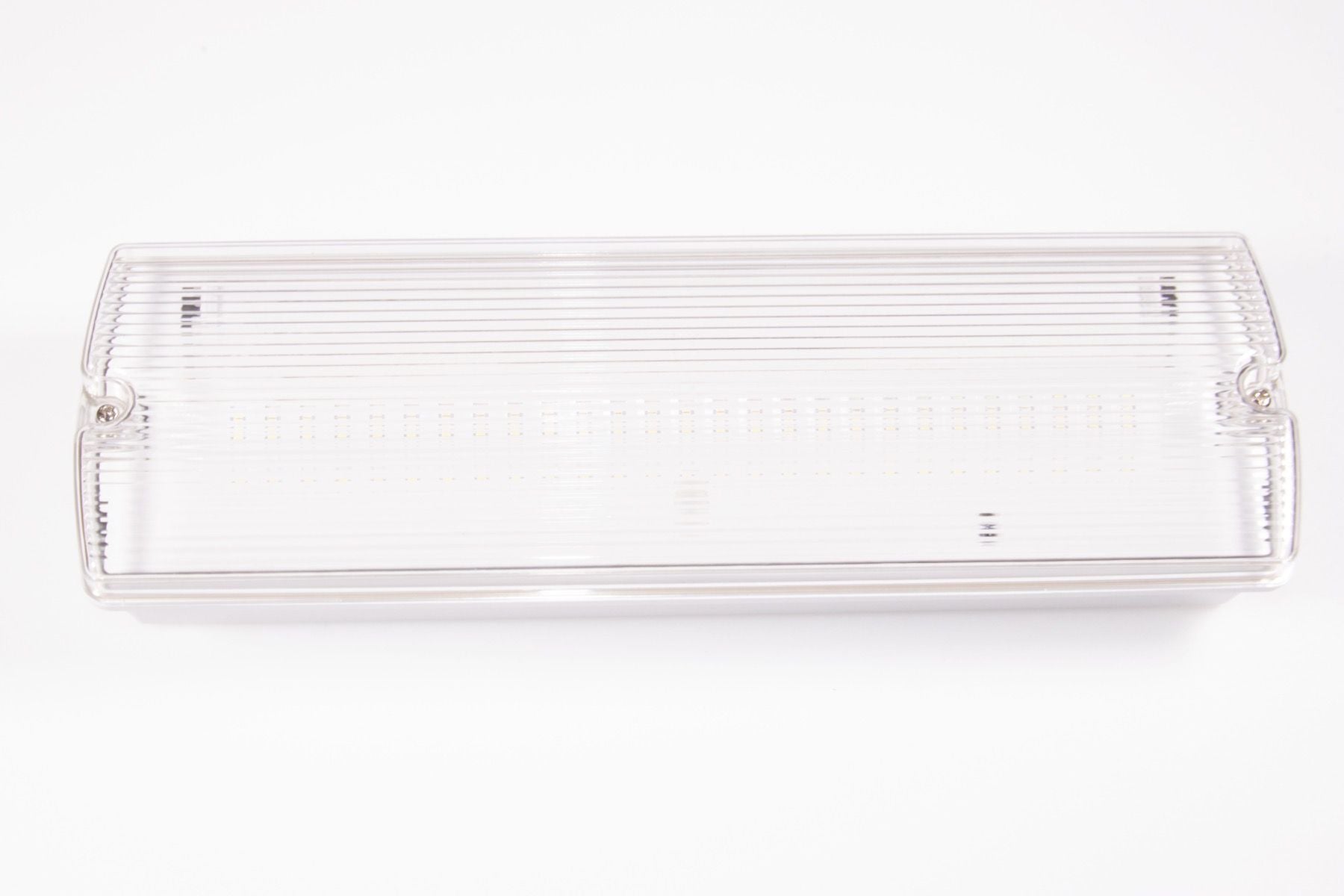

The Self-Testing LED Emergency Bulkhead is a reliable safety lighting solution designed to provide illumination during power failures. Suitable for commercial, industrial, and public buildings, this emergency bulkhead ensures safe evacuation routes and compliance with emergency lighting requirements.

This unit operates in maintained mode and can be converted to non-maintained operation by removing the link between L and SW/L, offering flexible installation options.

Equipped with automatic self-testing, the light performs monthly and yearly function checks to ensure correct operation without manual testing. A green LED indicator shows charging and system status.

The integrated Ni-Cad battery provides over 3 hours emergency backup, while efficient SMD LEDs deliver bright, consistent illumination with low energy consumption.

Ideal for corridors, stairwells, exits, commercial premises, warehouses, and public buildings.

 Key Features

  Maintained & convertible to non-maintained operation
  Automatic self-testing (monthly & yearly)
  Over 3 hours emergency backup duration
  High efficiency SMD LED light source
  Green LED charging & monitoring indicator
  Over-charge & over-discharge battery protection
  Energy efficient & low maintenance
  Suitable for commercial & safety applications

 Technical Specifications

System Mode: Maintained / Convertible Non-Maintained
Voltage: AC220-240V 50Hz / AC110V 60Hz
Power Consumption: 5.3W
Power Output: 1.62W
Colour Temperature: 6500K (Cool White)
LED Source: 27  SMD LED
Lumen Output (Mains): >228 lm
Lumen Output (Emergency): >154 lm
CRI: >70
Power Factor: 0.5
Dimension:(L)350mm*(W)110mm*(H)65mm

Battery: Ni-Cad 3.6V 1.5Ah
Emergency Duration: >3 Hours
Recharge Time: 24 Hours
Charging Current: 0.1A
Discharging Current: 0.42A
Battery Protection: Over-charge & over-discharge protection
Monitoring: Green charging indicator LED

Operating Temperature: 5°C to 25°C

 Applications

 Emergency exit routes
 Stairways & corridors
 Warehousing & industrial sites
 Commercial buildings
 Schools & hospitals
 Offices & public facilities

 Warranty Information

This product includes a 3-year warranty when registered.
Register your product via the warranty page to activate extended coverage.

Discontinued items under warranty will be replaced with the nearest equivalent model. Clearance items are not covered by warranty.

 FAQs

What is a maintained emergency light?
A maintained emergency light stays illuminated at all times and continues operating during a power failure.

Can this light be used as non-maintained?
Yes. It can be converted to non-maintained mode by removing the link between L and SW/L during installation.

How long does the emergency backup last?
The built-in Ni-Cad battery provides more than 3 hours of emergency illumination during power failure.

What does self-testing mean?
The self-testing function automatically performs monthly and yearly checks to ensure the emergency light is working correctly.

Is manual testing required?
No. The automatic self-test feature reduces the need for manual testing and maintenance.

Where should this emergency light be installed?
It is ideal for corridors, stairways, exits, commercial buildings, warehouses, schools, hospitals, and public spaces.

What does the green LED indicator show?
The green LED indicates charging status and confirms the system is operating correctly.

How long does the battery take to recharge?
The battery fully recharges within 24 hours.

Is this light suitable for UK safety compliance?
Yes, it is designed for emergency lighting applications commonly required in commercial and public buildings.
