Product Overview

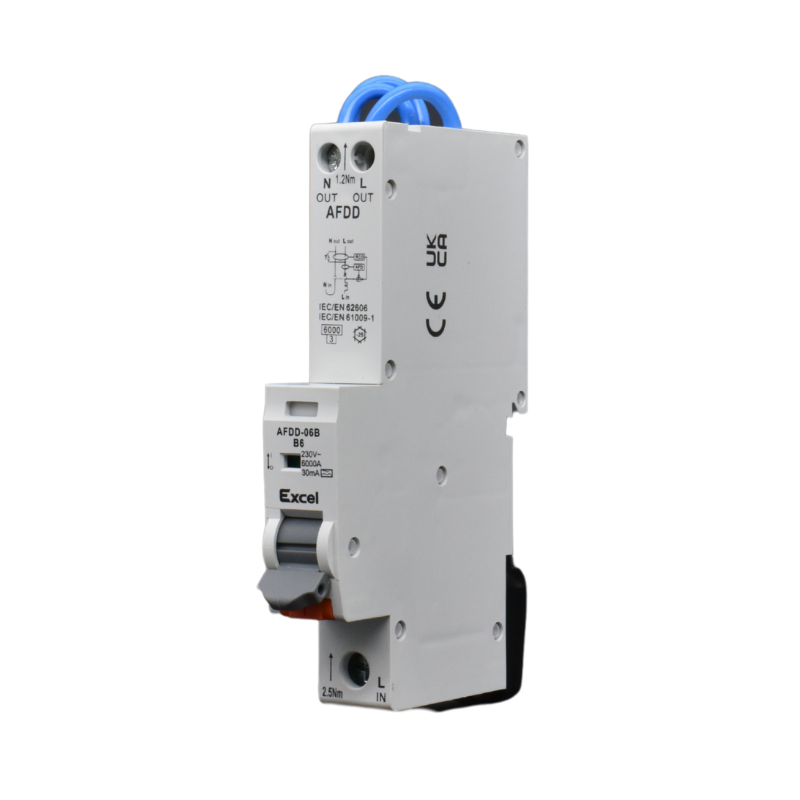

The AFDD-06B Arc Fault Detection Device RCBO is an advanced electrical safety solution designed to detect and prevent dangerous arc faults in modern wiring systems. Combining arc fault detection with residual current and overcurrent protection, this device offers comprehensive protection against fire hazards, electric shock, overload, and short circuit conditions. It is engineered to identify abnormal arc patterns that traditional breakers may not detect.

Ideal for residential and commercial applications, the AFDD-06B enhances safety by reducing the risk of electrical fires caused by damaged or deteriorating wiring. With a 6kA breaking capacity and 30mA sensitivity, it ensures fast and reliable fault interruption, protecting both people and electrical equipment in critical environments.

Key Features

• Detects and prevents dangerous arc faults
• Combined protection: arc fault, overload, short circuit, and leakage
• Enhances fire safety in electrical installations
• 30mA sensitivity for electric shock protection
• Suitable for residential and commercial use
• Compact design for easy installation
• Reliable and fast tripping mechanism
• Improves overall electrical system safety

Technical Specifications

• Model: AFDD-06B
• Rated Current: 6A
• Breaking Capacity: 6kA
• Tripping Curve: B Curve
• Device Type: AFDD RCBO (Arc Fault Detection Device with RCBO)
• Residual Current Rating: 30mA
• Protection Functions: Arc fault, leakage, overload, short circuit
• Application: Domestic and commercial installations

Why Choose a AFDD-06B Arc Fault Detection Device

Choosing the AFDD-06B ensures a higher level of protection compared to standard circuit breakers. It not only protects against common electrical faults but also detects arc faults that can lead to electrical fires. This makes it a critical safety device for modern buildings where wiring systems are more complex.

Its compact design and multi-functional protection reduce the need for multiple devices, saving space and simplifying installation. With fast response times and reliable performance, it provides peace of mind and long-term safety for both users and electrical systems.

Frequently Asked Questions (FAQs)

1. What is an AFDD device used for?
It detects arc faults in electrical circuits and prevents potential fire hazards.

2. How is AFDD different from RCBO?
An AFDD includes arc fault detection along with RCBO functions like leakage and overload protection.

3. Where can AFDD-06B be installed?
It is suitable for homes, offices, and commercial electrical systems.

4. What does 30mA sensitivity mean?
It indicates the leakage current level at which the device trips to prevent electric shock.

5. Why is arc fault protection important?
Arc faults can cause electrical fires, and AFDD devices detect and stop them before damage occurs.
