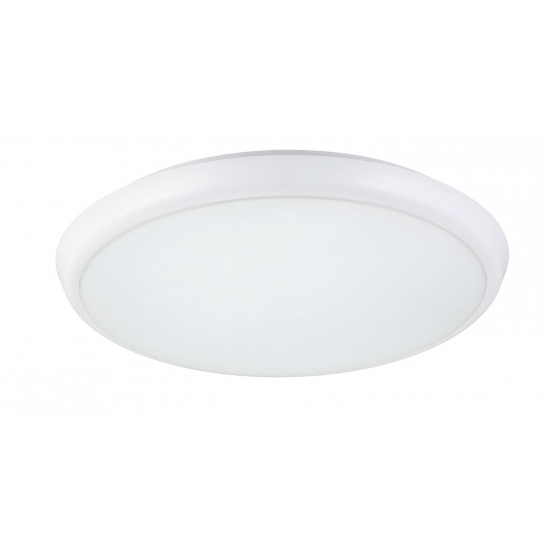

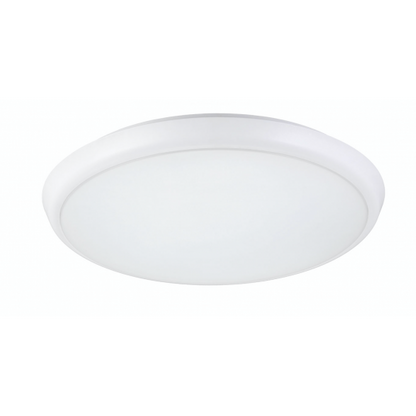

UKEW Lighting introduces a new generation of bulkhead lights, suitable for both domestic and commercial applications. This 22W LED ultra-slimline bulkhead features integrated driverless technology and boasts an impressive 2000 lumens output in crisp daylight white (6000K). At only 4cm deep, it is one of the slimmest bulkheads on the market. Equipped with an advanced microwave sensor, it offers intelligent energy-saving control with a standby dimming feature. You can set the light to remain on at a constant 20% output, switching to 100% when motion is detected, and then dimming back to 20% after a set time. With an IP65 weatherproof rating and an exceptional IK10 impact protection rating, it is incredibly durable and suitable for use in all bathroom zones, corridors, stairwells, and industrial environments.

Key Features of 22W Microwave Sensor LED Bulkhead

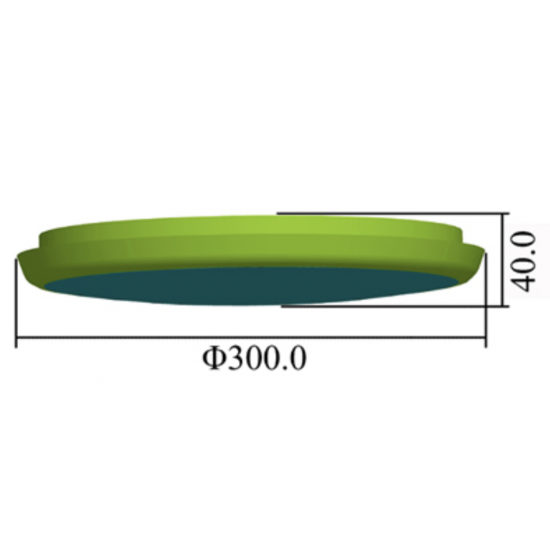

• Ultra-Slim Design: Only 40mm deep, providing a sleek, low-profile appearance on walls or ceilings.

• Powerful 22W LED: Delivers 2000 lumens of bright, efficient illumination.

• 6000K Daylight Colour: Crisp, cool white light ideal for security, task areas, and modern interiors.

• Advanced Microwave Sensor: Detects motion with adjustable range, time delay, and unique standby dimming function.

• Standby Dimming Feature: Can be set to 20% constant light, switching to 100% on detection for energy savings and security.

• IP65 Weatherproof: Fully protected against dust and water jets, suitable for all bathroom zones and outdoor use.

• IK10 Impact Protection: Virtually unbreakable, offering the highest level of impact resistance for demanding environments.

• Driverless Technology: Integrated design for reliability and slim profile.

• Wide Detection Range: Adjustable settings for ceiling (2-8m radius) or wall (5-15m radius) mounting.

• Versatile Application: Perfect for bathrooms, corridors, stairwells, offices, and industrial settings.

• Class 2 Double Insulated: No earth connection required for safe installation.

• 1 Year Warranty: Manufacturer guarantee for peace of mind.

Technical Specifications

Frequently Asked Questions (FAQs)

1. What is the advantage of the microwave sensor over a standard PIR sensor?
Microwave sensors are generally more sensitive and can detect motion through non-metallic materials like thin walls or glass. They also offer a wider and more adjustable detection range compared to standard PIR sensors.

2. How does the standby dimming function work?
This innovative feature allows the bulkhead to be set to a low-level constant light (20%) at night. When the microwave sensor detects motion, the light instantly jumps to 100% output. After the set time delay with no further motion, it dims back to 20%. This provides both security and energy savings.

3. What does the IK10 impact rating mean?
IK10 is the highest rating in the IK code for impact protection. It means the bulkhead is protected against 20 joules of impact, equivalent to the impact of a 5kg mass dropped from 40cm. This makes it virtually vandal-proof and ideal for schools, car parks, and industrial areas.

4. Can this bulkhead be installed in a shower room or bathroom?
Yes, absolutely. With its IP65 rating, it is fully protected against water jets and is suitable for use in all bathroom zones, including directly above showers or baths, subject to local wiring regulations.

5. How do I adjust the sensor settings?
The bulkhead features internal controls (typically potentiometers and DIP switches) that allow you to adjust the detection range, time delay, and standby dimming options to suit your specific installation and preferences.
